NetBox Copilot Quickstart Guide

note

NetBox Copilot is currently in public preview. You may encounter bugs or inconsistencies. For questions or assistance, contact copilot-team@netboxlabs.com.

Get NetBox Copilot up and running in your NetBox instance in just a few minutes.

Prerequisites

Before you begin, make sure you have:

• NetBox 4.2.x or higher (strongly recommended for best compatibility)
• A modern web browser: Chrome/Edge 90+, Firefox 88+, or Safari 14+

Installation Options

Choose the installation method that best fits your needs:

Option 1: Console-Based Installation (Temporary)

Recommended for:

• NetBox Cloud and NetBox Enterprise customers during the preview
• Quick evaluation and testing
• Trying before permanently installing

This method temporarily adds Copilot to your current browser session. You'll need to re-run the script after a page refresh or closing your browser. The script persists during normal NetBox navigation.

Steps:

1. Open your NetBox instance in your web browser

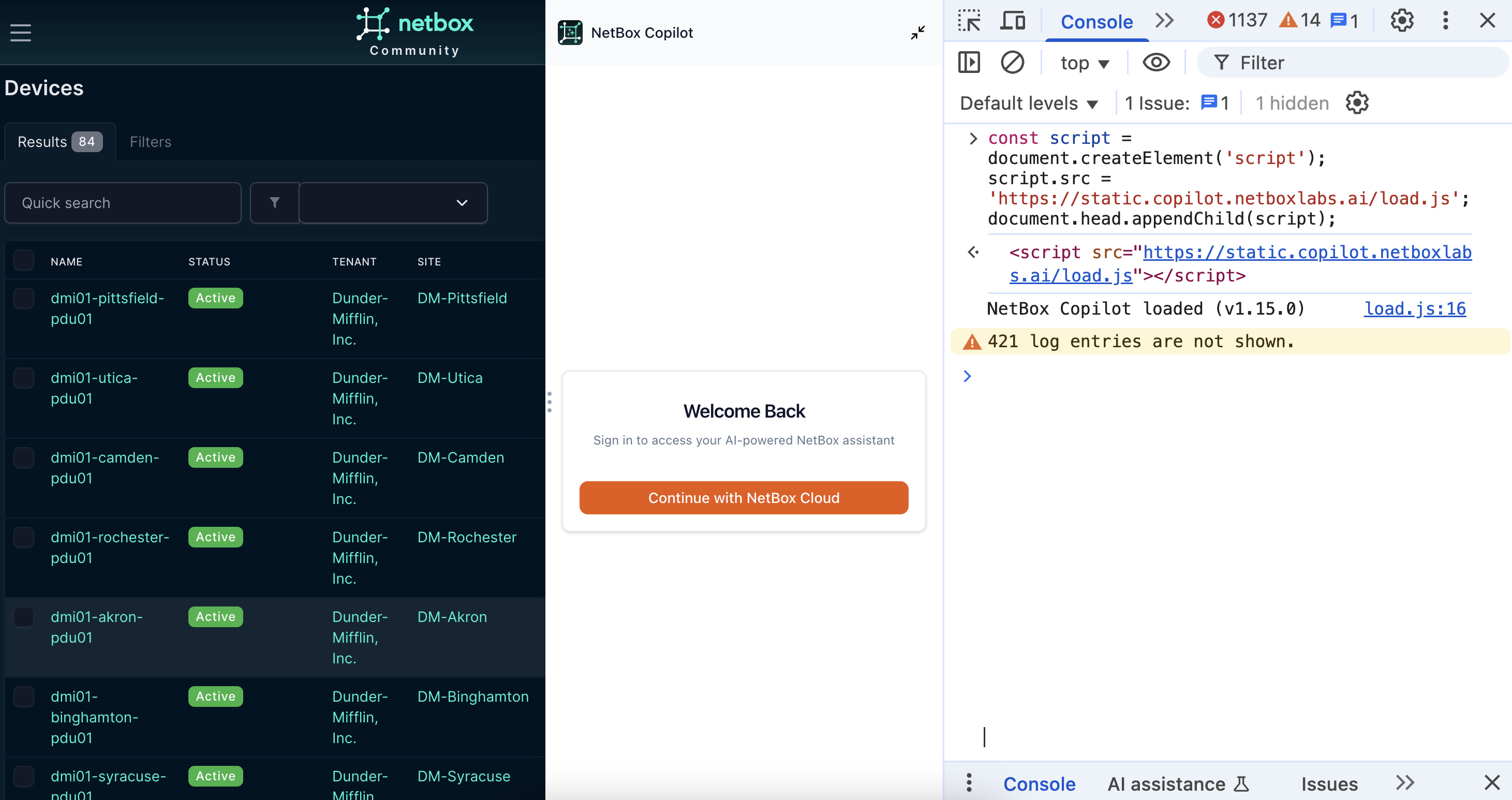

2. Open the browser developer console:

   • Windows/Linux: Press F12 or right-click anywhere and select "Inspect" → "Console"
   • Mac: Press Cmd+Option+I or right-click and select "Inspect Element" → "Console"

3. Copy and paste the following code into the console and press Enter:

const script = document.createElement('script');
script.src = 'https://static.copilot.netboxlabs.ai/load.js';
document.head.appendChild(script);

4. Copilot should appear in the bottom-right corner of your NetBox interface within a few seconds

Note: If you have firewall restrictions, ensure *.copilot.netboxlabs.ai is allowed as the application uses multiple domains in that scope.

Note: At general availability, we will provide integrated installation options for NetBox Cloud and NetBox Enterprise customers.

Option 2: Template Edit (Persistent)

Recommended for:

• NetBox Community users who want permanent installation
• Users who want Copilot to persist across browser sessions

This method adds Copilot to your NetBox installation configuration, making it available every time you access NetBox.

Steps:

Add this script tag before the closing </body> tag in your custom base.html template:

{% if request.user.is_authenticated %}
  <script src="https://static.copilot.netboxlabs.ai/load.js" defer></script>
{% endif %}

After making changes:

• Restart your NetBox service (command varies by setup)
• Clear your browser cache
• Reload your NetBox page

Note: At general availability, NetBox Cloud and NetBox Enterprise will have integrated installation options that don't require template modifications.

Verify Installation

After following either installation method:

1. Look for the Copilot interface in the bottom-right corner of your NetBox page
2. You should see a chat icon or Copilot panel
3. If nothing appears, check the browser console (F12) for any error messages

Troubleshooting:

• Copilot doesn't appear: Verify network access to *.copilot.netboxlabs.ai and check browser console for errors
• CORS errors in console: Check if your network has proxy or firewall restrictions (ensure *.copilot.netboxlabs.ai is allowed)
• Script loads but no interface: Try refreshing the page or clearing browser cache

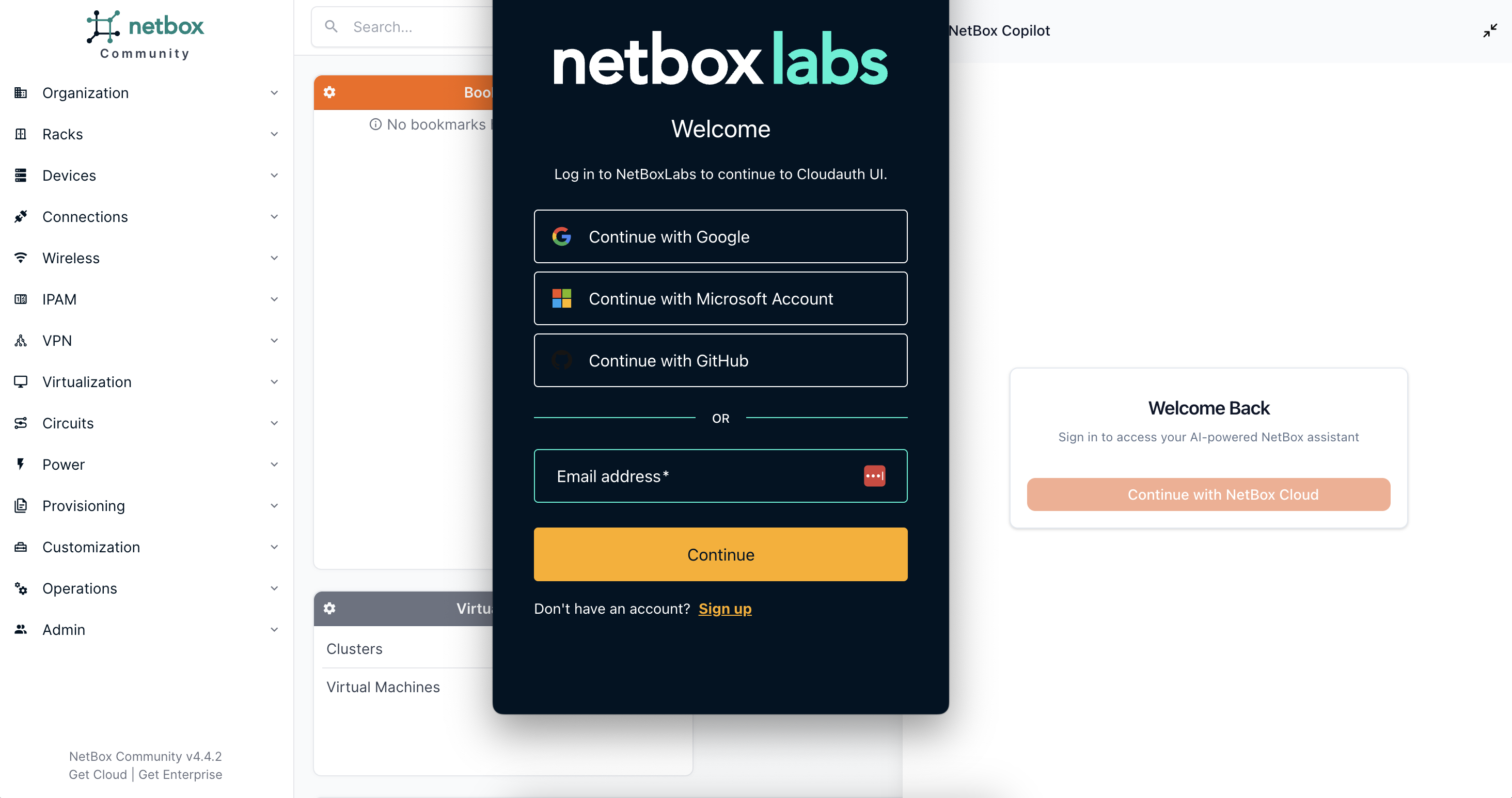

Create Your Account

The first time you open Copilot:

1. Click the Copilot interface in the bottom-right corner
2. You'll see a sign-up or login screen for NetBox Cloud
3. New users: Choose an authentication mechanism (SSO or email) and sign up for a NetBox Cloud account
4. Existing users: Log in with your existing credentials

Free Plan includes:

• 1 million AI credits (equivalent to up to 1 million input tokens or 200,000 output tokens)
• This should be enough for substantial usage and multiple extended conversations

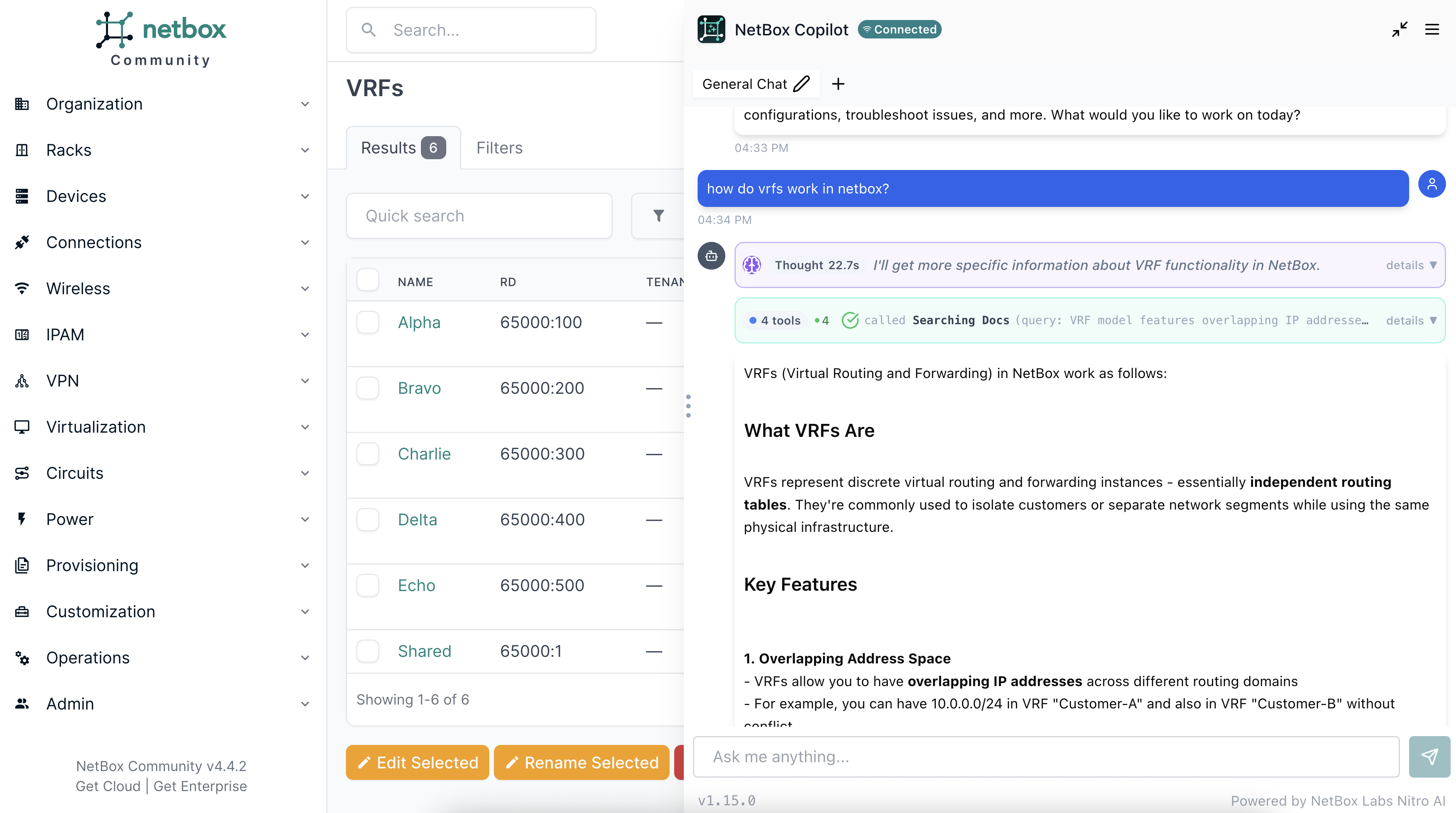

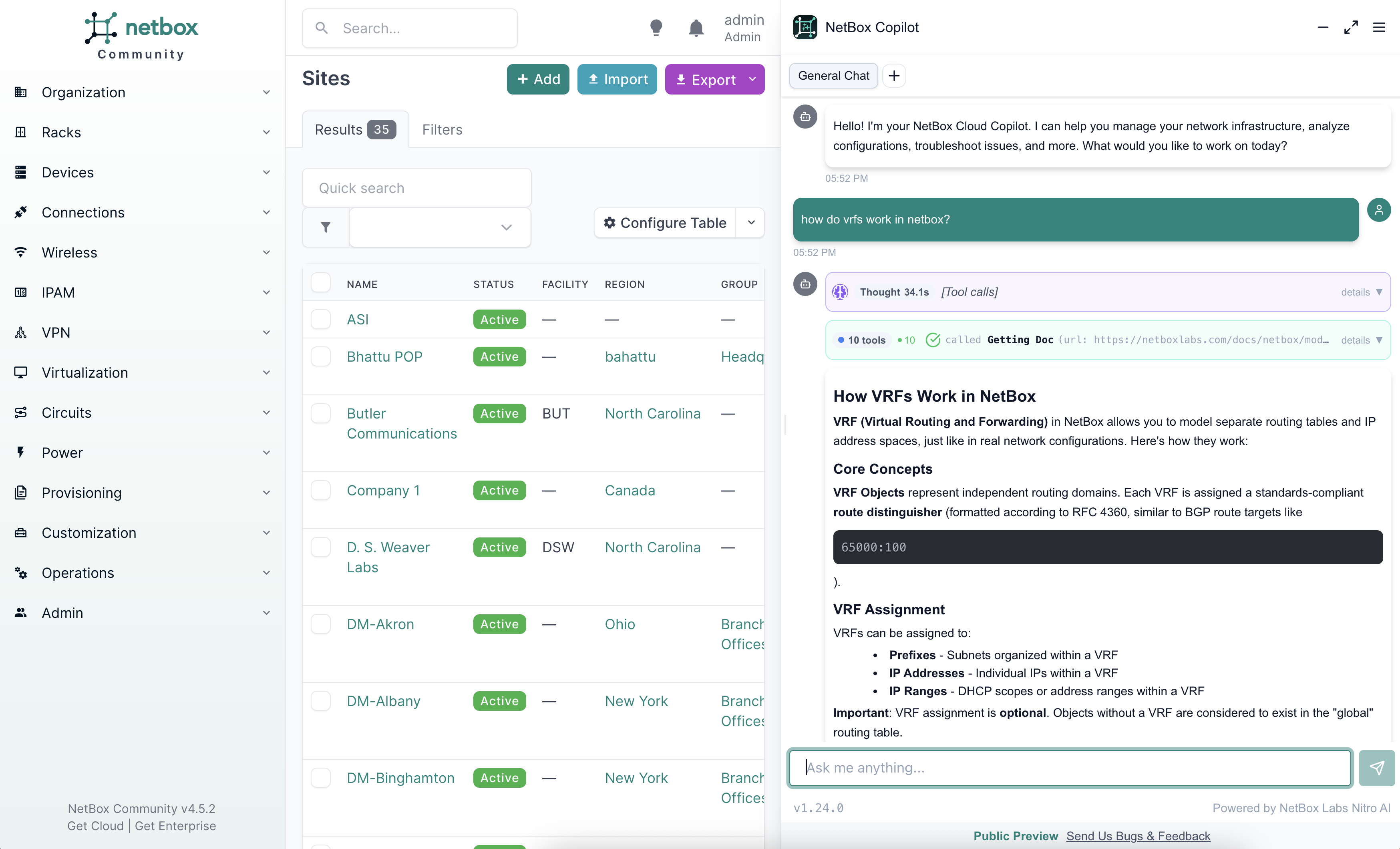

Your First Conversation

Once logged in, you're ready to start using Copilot!

Try these example queries:

1. Find devices: "Show me all devices in [your site name]"
2. Check IPs: "What IP addresses are available in 10.0.1.0/24?"
3. Inspect interfaces: "Which interfaces on [device name] are not connected?"
4. Review changes: "What changes were made to this device?" (when viewing a device page)
5. Get help: "How do VRFs work in NetBox?"

Understanding Responses:

Copilot will:

• Answer in natural language
• Show you how it gathered the information (thinking and tool usage traces)
• Maintain context across your conversation

Tips:

• Copilot knows what page you're on - you can say "this device" or "this site"
• Follow up with additional questions to drill deeper
• Ask Copilot to explain if something isn't clear

What's Next?

Now that you have Copilot running, explore what it can do:

• Usage Guide - Learn about all of Copilot's capabilities and best practices
• Privacy & Security - Understand how your data is handled
• FAQ - Get answers to common questions

Getting Help

Need assistance?

• Email: copilot-team@netboxlabs.com
• Use the feedback button within Copilot
• Include browser console errors when reporting issues

Have feedback? We're actively improving Copilot during Public Preview. Your feedback helps us make it better!
