Configuring SAML Group Mapping in NetBox Enterprise

Setting up Group Mapping for SAML requires the base SAML SSO Setup to be configured and working first.

Configure the IdP

NetBox Enterprise expects a SAML group attribute statement to be named groups, which contains a list of group names the user belongs to. If your IdP sends group information under a different attribute name, such as MemberOf, you must update its configuration to use groups to ensure proper mapping.

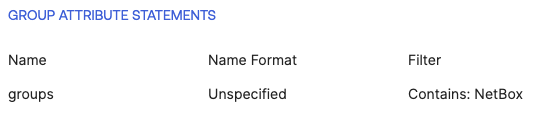

Example:

Configuring Group Mappings

1. Desired groups must first be configured within NetBox
2. In the Admin Console for NetBox Enterprise, navigate to the Config tab and scroll to the bottom to check Advanced Settings
3. Apply the following into NetBox Python Configuration Overrides, replacing the relevant information.

SOCIAL_AUTH_PIPELINE = (
'social_core.pipeline.social_auth.social_details',
'social_core.pipeline.social_auth.social_uid',
'social_core.pipeline.social_auth.social_user',
'social_core.pipeline.user.get_username',
'social_core.pipeline.social_auth.associate_by_email',
'social_core.pipeline.user.create_user',
'social_core.pipeline.social_auth.associate_user',
'netbox.authentication.user_default_groups_handler',
'social_core.pipeline.social_auth.load_extra_data',
'social_core.pipeline.user.user_details',
'nbc_auth_extensions.saml_authentication.saml_map_groups',
)

SOCIAL_AUTH_PIPELINE_CONFIG = \{
    'SAML_USER_FLAGS_BY_GROUP': \{
        "is_staff": \\\{
            "idp-staff-group-name" # remove this line if no group should be granted 'Staff'
        \\\},
        "is_superuser": \\\{
            "idp-superuser-group-name" # remove this line if no group should be granted 'Superuser'
        \\\}
    \},
    'SAML_GROUP_MAP': \\\{
        "idp-group-name-1": "netbox-group-name-1",
        "idp-group-name-2": "netbox-group-name-2"
    \\\}
\}
