LDAP Configuration for NetBox Enterprise

  1. In the Admin Console for NetBox Enterprise, navigate to the Config tab and scroll to the bottom to check Advanced Settings
  2. Apply the following into NetBox Python Configuration Overrides
REMOTE_AUTH_ENABLED = True
REMOTE_AUTH_BACKEND = 'netbox.authentication.LDAPBackend'
REMOTE_AUTH_CREATE_USER = True
  1. Apply the following into NetBox Environment Overrides, replacing the relevant information specific to your environment
AUTH_LDAP_SERVER_URI: "ldaps://xxxxxxx:636"
AUTH_LDAP_BIND_DN: "cn=administrator,cn=users,DC=nifry,DC=local"
AUTH_LDAP_BIND_PASSWORD: "xxxxxx"
AUTH_LDAP_CONNECTION_OPTIONS: "{ ldap.OPT_REFERRALS: 0 }"
AUTH_LDAP_USER_SEARCH_BASEDN: "cn=users,dc=nifry,dc=local"
AUTH_LDAP_USER_SEARCH: 'LDAPSearch("cn=users,dc=nifry,dc=local", ldap.SCOPE_SUBTREE, "sAMAccountName=%(user)s")'
AUTH_LDAP_GROUP_TYPE: "NestedGroupOfNamesType"
AUTH_LDAP_GROUP_SEARCH_BASEDN: "cn=users,DC=nifry,DC=local"
AUTH_LDAP_FIND_GROUP_PERMS: true
AUTH_LDAP_MIRROR_GROUPS: true
AUTH_LDAP_REQUIRE_GROUP_DN: "CN=Netbox Users,CN=Users,DC=nifry,DC=local"
AUTH_LDAP_IS_ADMIN_DN: "CN=Netbox Admins,CN=Users,DC=nifry,DC=local"
AUTH_LDAP_IS_SUPERUSER_DN: "CN=Netbox Superusers,CN=Users,DC=nifry,DC=local"
AUTH_LDAP_CACHE_TIMEOUT: 0
LDAP_IGNORE_CERT_ERRORS: true

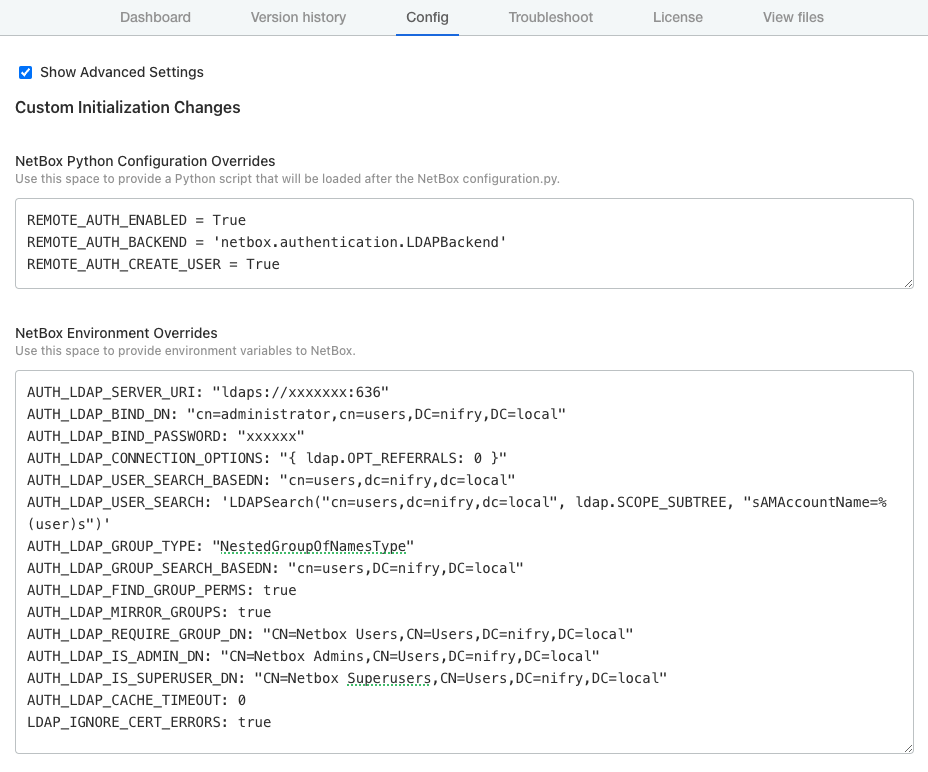

  1. Here's how it should look in the end LDAP Settings
