Using the NetBox Assurance UI

The NetBox Assurance plugin provides a comprehensive web interface within NetBox for monitoring network drift, viewing deviation reports, and managing remediation workflows. This guide covers the interface features, navigation, and operational workflows for day-to-day use of NetBox Assurance.

Prerequisites: Before using this guide, complete the Getting Started setup to ensure NetBox Assurance is properly configured and receiving data.

Once the NetBox Assurance plugin is installed, you'll find the Assurance menu in the NetBox sidebar with the following sections:

Deviation Types​

  • Deviation Types: Browse and manage different types of network deviations that can be detected

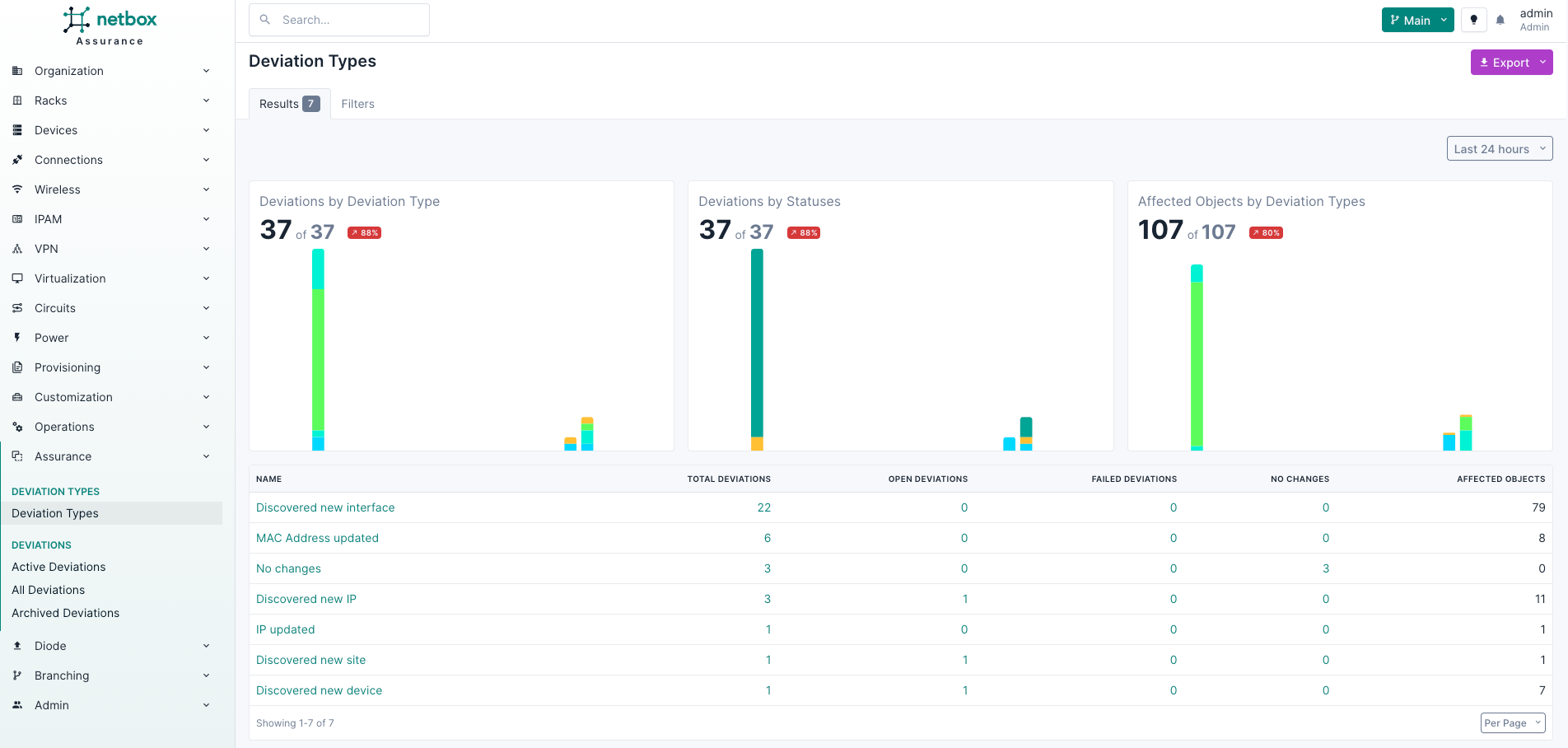

Deviation Types

Deviations​

  • Active Deviations: View currently unresolved configuration deviations
  • All Deviations: Complete list of all detected deviations (active and resolved)
  • Archived Deviations: Historical view of resolved or archived deviations

Main Deviation Views​

All Deviations List​

The main deviations page provides a comprehensive overview of all detected network drift:

Key Features:

  • Visual Charts: Timeline charts showing deviation trends and patterns
  • Filterable Table: Search and filter deviations by various criteria
  • Export Options: Export deviation data in multiple formats
  • Bulk Actions: Apply actions to multiple deviations simultaneously

Available Filters:

  • Date range selection for focused analysis
  • Deviation type filtering
  • Status-based filtering
  • Source-based filtering

Active Deviations​

Shows only unresolved deviations that require attention:

  • Real-time view of current network drift
  • Prioritized by detection date
  • Immediate action items for network operations teams

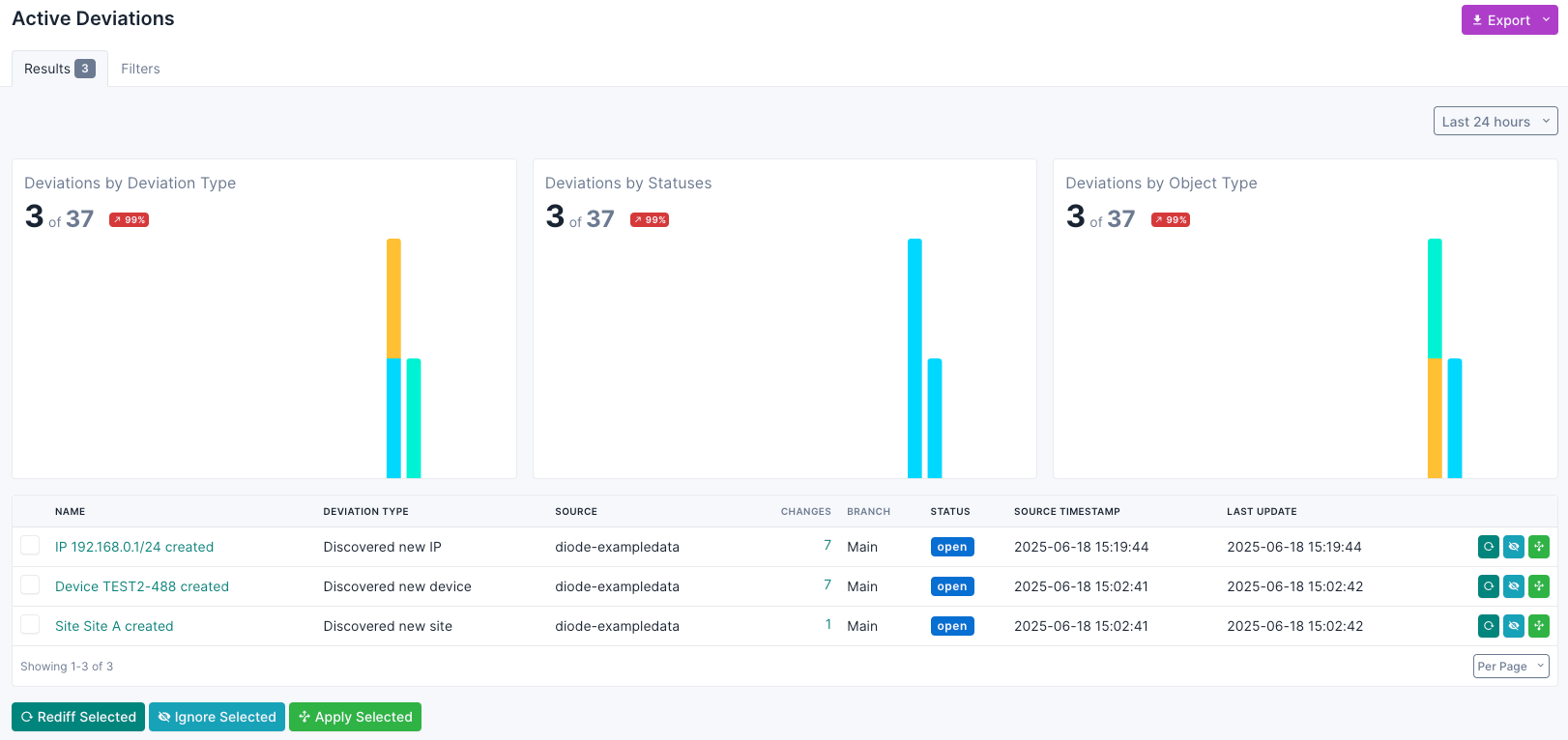

Active Deviations

Archived Deviations​

Historical view of resolved deviations:

  • Track remediation history
  • Analyze patterns in network drift
  • Compliance reporting and auditing

Deviation Detail View​

When you click on a specific deviation, you'll see detailed information:

Overview Tab​

Deviation Information:

  • Deviation name and identifier
  • Data type affected
  • Number of changes detected
  • Current status with visual indicators
  • Branch information (if using NetBox branching)
  • Source system and timestamp
  • Last update information

Ingested Data Panel:

  • Raw data that was ingested from the network
  • Formatted JSON view for technical analysis

Error Details (if applicable):

  • Error messages for failed operations
  • Detailed error information for troubleshooting

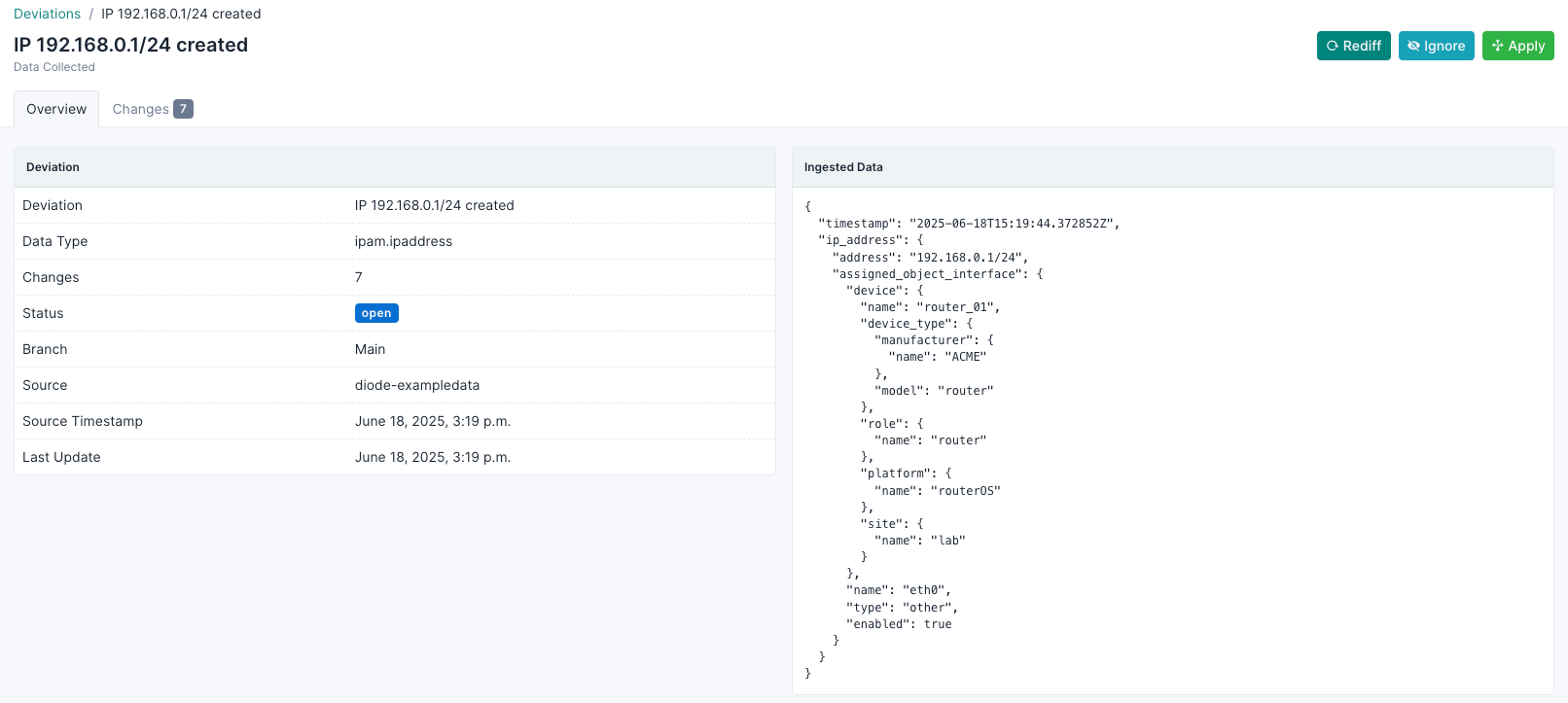

Deviation Details

Changes Tab​

  • Detailed view of specific configuration changes
  • Object-by-object comparison
  • Before/after state visualization

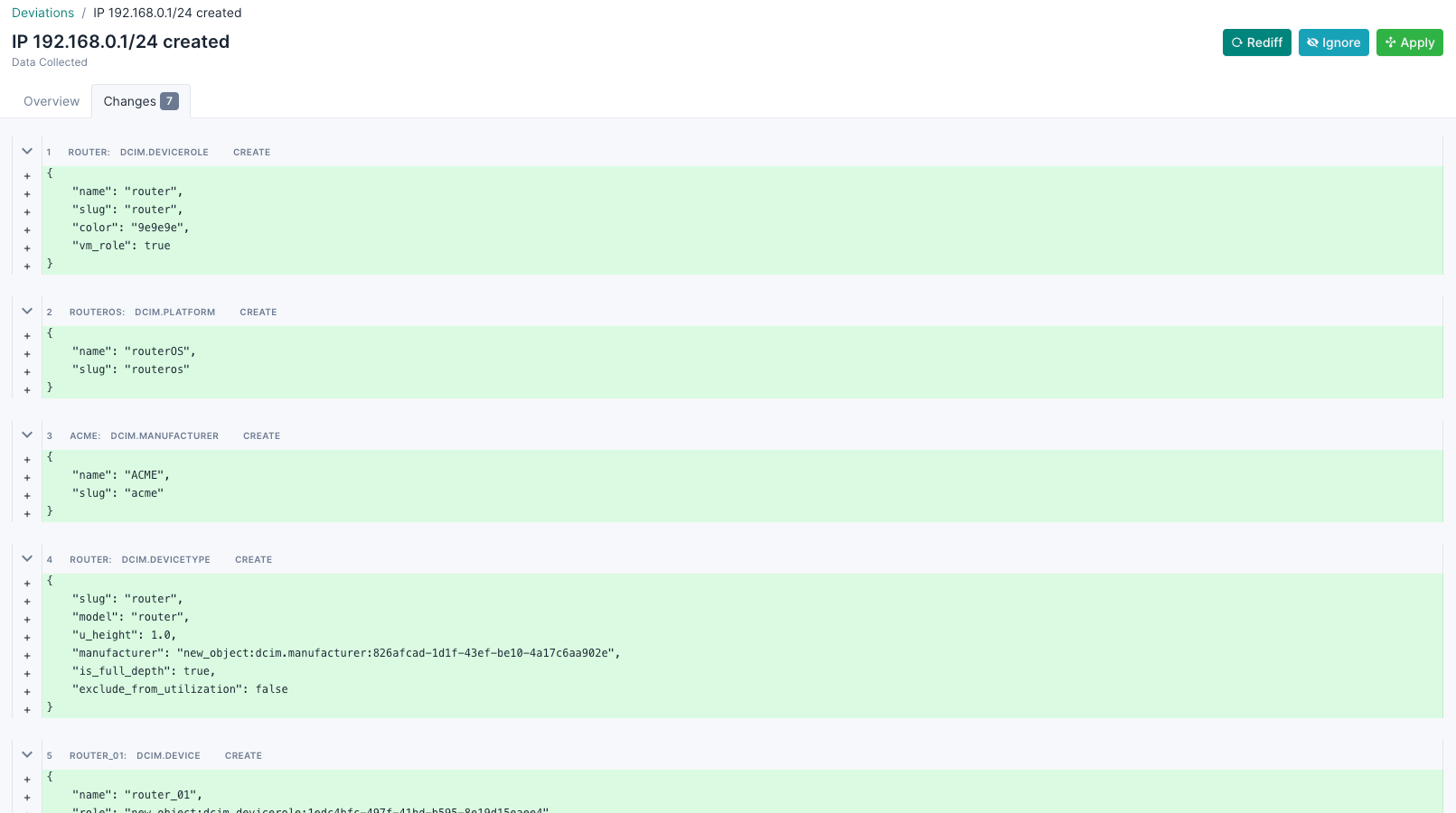

Deviation Change Set

Bulk Operations​

The deviation list supports several bulk operations:

Rediff Selected​

  • Re-analyze selected deviations
  • Useful when network state may have changed
  • Updates deviation status based on current conditions

Ignore Selected​

  • Mark deviations as acceptable
  • Removes them from active monitoring
  • Useful for planned configuration differences

Apply Selected​

  • Automatically remediate selected deviations
  • Applies corrections based on predefined rules
  • Updates NetBox or network devices as configured

Data Visualization​

Timeline Charts​

  • Visual representation of deviation trends over time
  • Stacked bar charts showing deviation types
  • Customizable date ranges for analysis
  • Color-coded by deviation status

Status Indicators​

Deviations are marked with clear visual indicators:

  • Active: Requires attention
  • Applied: Successfully remediated
  • Failed: Remediation attempt failed
  • Ignored: Marked as acceptable

Export and Reporting​

Export Options​

  • Current View: Export filtered results
  • All Data: Complete deviation dataset
  • Custom Templates: Use predefined export formats

Supported Formats​

  • Table format for immediate viewing
  • Structured data formats for integration
  • Custom export templates for specific reporting needs

Integration Features​

NetBox Integration​

  • Seamless integration with NetBox's existing interface
  • Respects NetBox's user permissions and roles
  • Consistent styling and user experience
  • Integration with NetBox's change logging system

Branching Support​

  • Compatible with NetBox branching features
  • Branch-specific deviation tracking
  • Branch information displayed in deviation details

Workflow Best Practices​

Daily Operations​

  1. Review Active Deviations: Start with the active deviations view
  2. Analyze Trends: Check timeline charts for patterns
  3. Prioritize Actions: Focus on critical deviations first
  4. Bulk Processing: Use bulk actions for similar deviations

Investigation Process​

  1. Drill Down: Click on deviations for detailed analysis
  2. Review Changes: Examine specific configuration differences
  3. Check Source Data: Verify ingested data accuracy
  4. Determine Action: Decide between applying, ignoring, or escalating

Remediation Workflow​

  1. Select Appropriate Action: Choose between update NetBox or correct device
  2. Use Bulk Operations: Process similar deviations together
  3. Monitor Results: Verify successful remediation
  4. Document Decisions: Use NetBox's change logging for audit trails

Troubleshooting​

Common Issues​

  • Failed Deviations: Check error details for specific failure reasons
  • Missing Data: Verify source system connectivity

Performance Considerations​

  • Use date range filters to limit large datasets
  • Export data in smaller chunks for better performance
  • Leverage bulk operations for efficiency

The NetBox Assurance UI provides a powerful platform for managing network drift detection and remediation, helping maintain consistency between your documented network design and operational reality through an intuitive web interface.
