Cisco Meraki MX95
The Cisco Meraki MX95 (MX95) is a 1U infrastructure device from Cisco Systems. It features 12 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, operational.
Last verified: April 4, 2026
Key Facts
| Manufacturer | Cisco Systems |
|---|---|
| Model | Meraki MX95 |
| Part Number | MX95 |
| Type | Device Type |
| Form Factor | 1U, half-depth |
| Airflow | front-to-rear |
| Weight | 10.74 lb |
| Interfaces | 12 ports |
| Source | Community DTL |
| Enrichment | 7 categories available |
Specifications
Interfaces (12)
| Name | Type | Mgmt Only | Label |
|---|---|---|---|
| USB | lte | ||
| Management | 1000base-t | true | |
| WAN 1 | 10gbase-x-sfpp | ||
| WAN 2 | 10gbase-x-sfpp | ||
| WAN 3 | 2.5gbase-t | ||
| WAN 4 | 2.5gbase-t | ||
| Port 5 | 1000base-t | ||
| Port 6 | 1000base-t | ||
| Port 7 | 1000base-t | ||
| Port 8 | 1000base-t | ||
| Port 9 | 10gbase-x-sfpp | ||
| Port 10 | 10gbase-x-sfpp |
Power Ports (1)
| Name | Type | Max Draw (W) | Allocated (W) |
|---|---|---|---|
| Slot 1 | iec-60320-c14 | 109 | 42 |
Data Sources & Provenance
| Field | Type | Confidence | Source |
|---|---|---|---|
| thermal.tdp_watts | vendor datasheet | high | documentation.meraki.com |
| environmental.max_operating_temp_c | vendor datasheet | high | documentation.meraki.com |
| thermal.cooling_type | vendor datasheet | high | documentation.meraki.com |
| environmental.max_operating_temp_c | vendor datasheet | high | www.cloudwifiworks.com |
| lifecycle.ga_date | vendor datasheet | high | meraki.cisco.com |
| operational.max_power_draw_watts | vendor datasheet | high | meraki.cisco.com |
| environmental.min_operating_temp_c | vendor documentation | medium-high | documentation.meraki.com |
| environmental.operating_humidity_min | vendor documentation | medium-high | documentation.meraki.com |
| environmental.operating_humidity_max | vendor documentation | medium-high | documentation.meraki.com |
| platform.nos | vendor product page | high | documentation.meraki.com |
| platform.api_types | heuristic | medium | derived from extension blocks and cli_protocol |
| snmp.vendor_oid_prefix | vendor documentation | high | www.cisco.com |
| snmp.versions | vendor documentation | medium-high | www.cisco.com |
Frequently Asked Questions
What is the Cisco Meraki MX95?
The Cisco Meraki MX95 (MX95) is a 1U infrastructure device from Cisco Systems. It features 12 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, operational.
What is the form factor of the Cisco Meraki MX95?
The Cisco Meraki MX95 is a 1U half-depth device with front-to-rear airflow. It weighs 10.74 lb.
How many ports does the Cisco Meraki MX95 have?
The Cisco Meraki MX95 has 12 network interfaces: 5x 1000base-t, 4x 10gbase-x-sfpp, 2x 2.5gbase-t, 1x lte.
What are the power requirements for the Cisco Meraki MX95?
The Cisco Meraki MX95 has 1 power port (iec-60320-c14). Maximum power draw is 109W.
Is the Cisco Meraki MX95 still supported?
Lifecycle data is available for the Cisco Meraki MX95 in the NDX catalog. Access full lifecycle dates including general availability, end-of-sale, and end-of-support through NetBox Cloud or Enterprise.
What operational data is available for the Cisco Meraki MX95?
The NDX catalog includes enrichment data for the Cisco Meraki MX95 in the following categories: lifecycle, thermal, environmental, operational, platform, snmp, imagery. Full enrichment values are available through NetBox Cloud or Enterprise.
How do I add the Cisco Meraki MX95 to NetBox?
You can import the Cisco Meraki MX95 directly into NetBox via the NDX features available in NetBox Cloud and NetBox Enterprise. NetBox Community users may download the YAML type definition and import it manually.
Where does the Cisco Meraki MX95 data come from?
The Cisco Meraki MX95 device type definition originates from the NetBox Community Device Type Library and has been enriched with operational metadata by NetBox Labs.
Related Devices from Cisco Systems
Last verified April 4, 2026.

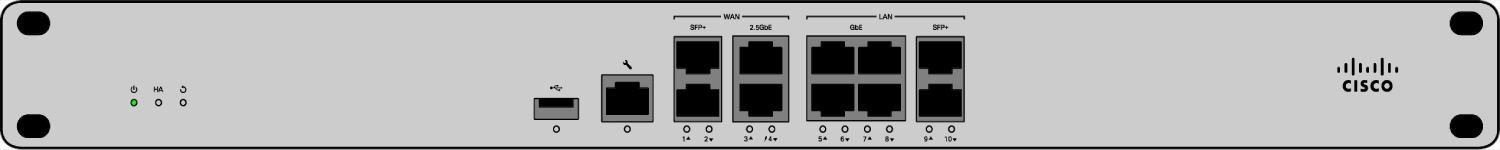

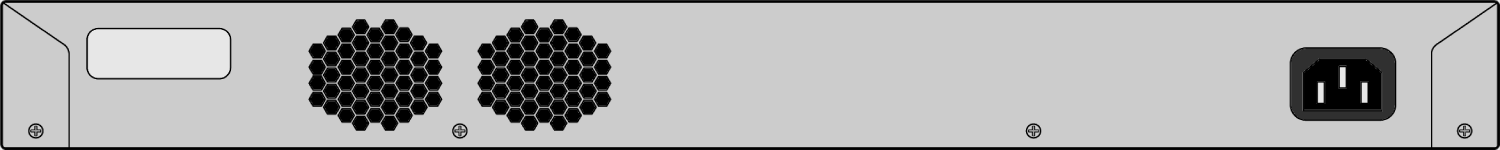

Elevation
Enrichment Availability
| Category | Available |
|---|---|
| Lifecycle | |
| Thermal | |
| Environmental | |
| Operational | |
| Platform | |
| SNMP | |
| gNMI | |
| NETCONF | |
| Redfish | |
| Modbus | |
| Imagery |
Access full enrichment data with NetBox Cloud or Enterprise.
