Cisco Catalyst 1300-24XT
The Cisco Catalyst 1300-24XT (C1300-24XT) is a 1U infrastructure device from Cisco Systems. It features 26 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, operational.
Last verified: June 2, 2026
Key Facts
| Manufacturer | Cisco Systems |
|---|---|
| Model | Catalyst 1300-24XT |
| Part Number | C1300-24XT |
| Type | Device Type |
| Form Factor | 1U, half-depth |
| Airflow | front-to-rear |
| Weight | 9.45 lb |
| Interfaces | 26 ports |
| Source | Community DTL |
| Enrichment | 7 categories available |
Specifications
Interfaces (26)
| Name | Type | Mgmt Only | Label |
|---|---|---|---|
| TenGigabitEthernet1/0/1 | 10gbase-t | ||
| TenGigabitEthernet1/0/2 | 10gbase-t | ||
| TenGigabitEthernet1/0/3 | 10gbase-t | ||
| TenGigabitEthernet1/0/4 | 10gbase-t | ||
| TenGigabitEthernet1/0/5 | 10gbase-t | ||
| TenGigabitEthernet1/0/6 | 10gbase-t | ||
| TenGigabitEthernet1/0/7 | 10gbase-t | ||
| TenGigabitEthernet1/0/8 | 10gbase-t | ||
| TenGigabitEthernet1/0/9 | 10gbase-t | ||
| TenGigabitEthernet1/0/10 | 10gbase-t | ||
| TenGigabitEthernet1/0/11 | 10gbase-t | ||
| TenGigabitEthernet1/0/12 | 10gbase-t | ||
| TenGigabitEthernet1/0/13 | 10gbase-t | ||
| TenGigabitEthernet1/0/14 | 10gbase-t | ||
| TenGigabitEthernet1/0/15 | 10gbase-t | ||
| TenGigabitEthernet1/0/16 | 10gbase-t | ||
| TenGigabitEthernet1/0/17 | 10gbase-t | ||
| TenGigabitEthernet1/0/18 | 10gbase-t | ||
| TenGigabitEthernet1/0/19 | 10gbase-t | ||
| TenGigabitEthernet1/0/20 | 10gbase-t | ||
| TenGigabitEthernet1/0/21 | 10gbase-x-sfpp | ||
| TenGigabitEthernet1/0/22 | 10gbase-x-sfpp | ||
| TenGigabitEthernet1/0/23 | 10gbase-x-sfpp | ||
| TenGigabitEthernet1/0/24 | 10gbase-x-sfpp | ||
| OOB | 1000base-t | true | |
| Vlan1 | virtual | false |
Power Ports (1)
| Name | Type | Max Draw (W) | Allocated (W) |
|---|---|---|---|
| PSU0 | iec-60320-c14 | 88 |
Console Ports (3)
| Name | Type |
|---|---|
| con0 | rj-45 |
| con1 | usb-c |
| con2 | usb-a |
Data Sources & Provenance
| Field | Type | Confidence | Source |
|---|---|---|---|
| thermal.tdp_watts | vendor datasheet | high | www.cisco.com |
| environmental.max_operating_temp_c | vendor datasheet | high | www.cisco.com |
| thermal.cooling_type | vendor datasheet | high | www.cisco.com |
| lifecycle.ga_date | third party | medium | www.theregister.com |
| operational.typical_power_draw_watts | vendor datasheet | high | www.cisco.com |
| operational.max_power_draw_watts | vendor datasheet | high | www.cisco.com |
| operational.noise_level_dba | vendor datasheet | high | www.cisco.com |
| environmental.min_operating_temp_c | vendor datasheet | high | www.cisco.com |
| environmental.operating_humidity_min | vendor datasheet | high | www.cisco.com |
| environmental.operating_humidity_max | vendor datasheet | high | www.cisco.com |
| platform.nos | vendor datasheet | high | www.cisco.com |
| platform.nos_family | vendor datasheet | high | www.cisco.com |
| platform.api_types | vendor datasheet | high | www.cisco.com |
| platform.profile | vendor datasheet | high | www.cisco.com |
| snmp.vendor_oid_prefix | vendor documentation | medium-high | www.cisco.com |
| snmp.profile | vendor datasheet | high | www.cisco.com |
Frequently Asked Questions
What is the Cisco Catalyst 1300-24XT?
The Cisco Catalyst 1300-24XT (C1300-24XT) is a 1U infrastructure device from Cisco Systems. It features 26 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, operational.
What is the form factor of the Cisco Catalyst 1300-24XT?
The Cisco Catalyst 1300-24XT is a 1U half-depth device with front-to-rear airflow. It weighs 9.45 lb.
How many ports does the Cisco Catalyst 1300-24XT have?
The Cisco Catalyst 1300-24XT has 26 network interfaces: 20x 10gbase-t, 4x 10gbase-x-sfpp, 1x 1000base-t, 1x virtual.
What are the power requirements for the Cisco Catalyst 1300-24XT?
The Cisco Catalyst 1300-24XT has 1 power port (iec-60320-c14). Maximum power draw is 88W.
Is the Cisco Catalyst 1300-24XT still supported?
Lifecycle data is available for the Cisco Catalyst 1300-24XT in the NDX catalog. Access full lifecycle dates including general availability, end-of-sale, and end-of-support through NetBox Cloud or Enterprise.
What operational data is available for the Cisco Catalyst 1300-24XT?
The NDX catalog includes enrichment data for the Cisco Catalyst 1300-24XT in the following categories: lifecycle, thermal, environmental, operational, platform, snmp, imagery. Full enrichment values are available through NetBox Cloud or Enterprise.
How do I add the Cisco Catalyst 1300-24XT to NetBox?
You can import the Cisco Catalyst 1300-24XT directly into NetBox via the NDX features available in NetBox Cloud and NetBox Enterprise. NetBox Community users may download the YAML type definition and import it manually.
Where does the Cisco Catalyst 1300-24XT data come from?
The Cisco Catalyst 1300-24XT device type definition originates from the NetBox Community Device Type Library and has been enriched with operational metadata by NetBox Labs.
Related Devices from Cisco Systems
Last verified June 2, 2026.

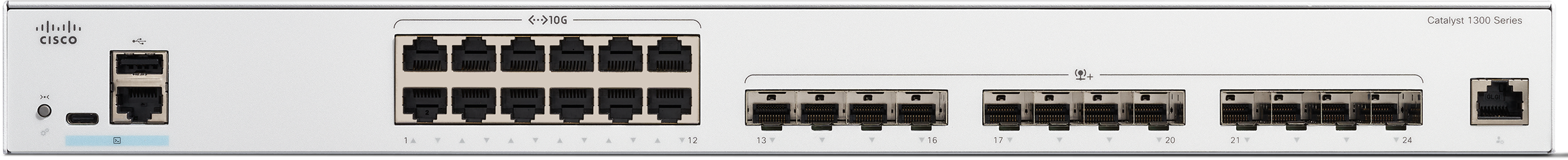

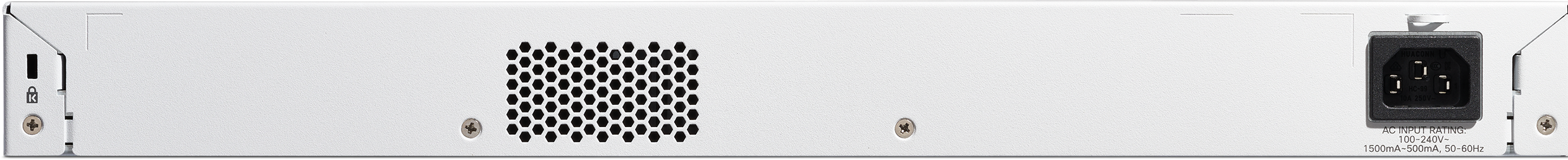

Elevation
Enrichment Availability
| Category | Available |
|---|---|
| Lifecycle | |
| Thermal | |
| Environmental | |
| Operational | |
| Platform | |
| SNMP | |
| gNMI | |
| NETCONF | |
| Redfish | |
| Modbus | |
| Imagery |
Access full enrichment data with NetBox Cloud or Enterprise.
