Cisco ASR-9901
The Cisco ASR-9901 is a 2U infrastructure device from Cisco Systems. It features 42 network interfaces. The NDX catalog provides enrichment data across 9 categories including lifecycle, thermal, environmental, operational.
Last verified: April 4, 2026
Key Facts
| Manufacturer | Cisco Systems |
|---|---|
| Model | ASR-9901 |
| Part Number | ASR-9901 |
| Type | Device Type |
| Form Factor | 2U, full-depth |
| Weight | 25.4 kg |
| Interfaces | 42 ports |
| Source | Community DTL |
| Enrichment | 9 categories available |
Specifications
Interfaces (42)
| Name | Type | Mgmt Only | Label |
|---|---|---|---|
| MgmtEth0/RSP0/CPU0/0 | 1000base-t | ||
| GigabitEthernet0/0/0/1 | 1000base-x-sfp | ||
| GigabitEthernet0/0/0/2 | 1000base-x-sfp | ||
| GigabitEthernet0/0/0/3 | 1000base-x-sfp | ||
| GigabitEthernet0/0/0/4 | 1000base-x-sfp | ||
| GigabitEthernet0/0/0/5 | 1000base-x-sfp | ||
| GigabitEthernet0/0/0/6 | 1000base-x-sfp | ||
| GigabitEthernet0/0/0/7 | 1000base-x-sfp | ||
| GigabitEthernet0/0/0/34 | 1000base-x-sfp | ||
| GigabitEthernet0/0/0/35 | 1000base-x-sfp | ||
| GigabitEthernet0/0/0/36 | 1000base-x-sfp | ||
| GigabitEthernet0/0/0/37 | 1000base-x-sfp | ||
| GigabitEthernet0/0/0/38 | 1000base-x-sfp | ||
| GigabitEthernet0/0/0/39 | 1000base-x-sfp | ||
| GigabitEthernet0/0/0/40 | 1000base-x-sfp | ||
| GigabitEthernet0/0/0/41 | 1000base-x-sfp | ||
| HundredGigE0/0/0/20 | 100gbase-x-qsfp28 | ||
| HundredGigE0/0/0/21 | 100gbase-x-qsfp28 | ||
| TenGigE0/0/0/8 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/9 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/10 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/11 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/12 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/13 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/14 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/15 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/16 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/17 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/18 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/19 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/22 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/23 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/24 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/25 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/26 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/27 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/28 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/29 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/30 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/31 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/32 | 10gbase-x-sfpp | ||
| TenGigE0/0/0/33 | 10gbase-x-sfpp |
Console Ports (1)
| Name | Type |
|---|---|
| con 0 | rj-45 |
Module Bays (5)
| Name | Position | Label |
|---|---|---|
| 0/PT0-PM0 | 0/PT0-PM0 | |
| 0/PT0-PM1 | 0/PT0-PM1 | |
| 0/FT0 | 0/FT0 | |
| 0/FT1 | 0/FT1 | |
| 0/FT2 | 0/FT2 |
Data Sources & Provenance
| Field | Type | Confidence | Source |
|---|---|---|---|
| thermal.tdp_watts | vendor datasheet | high | www.cisco.com |
| environmental.max_operating_temp_c | vendor datasheet | high | www.cisco.com |
| thermal.cooling_type | vendor datasheet | high | www.cisco.com |
| lifecycle.ga_date | vendor datasheet | high | www.cisco.com |
| operational.max_power_draw_watts | vendor datasheet | high | www.cisco.com |
| operational.typical_power_draw_watts | vendor datasheet | high | www.cisco.com |
| lifecycle.eosw_date | vendor eol bulletin | high | www.cisco.com |
| lifecycle.eosec_date | vendor eol bulletin | high | www.cisco.com |
| environmental.min_operating_temp_c | vendor datasheet | medium-high | www.cisco.com |
| environmental.operating_humidity_min | vendor datasheet | medium-high | www.cisco.com |
| environmental.operating_humidity_max | vendor datasheet | medium-high | www.cisco.com |
| environmental.operating_altitude_m | vendor datasheet | medium-high | www.cisco.com |
| platform.nos | vendor product page | high | www.cisco.com |
| platform.api_types | heuristic | medium | derived from extension blocks and cli_protocol |
| snmp.vendor_oid_prefix | vendor documentation | high | www.cisco.com |
| snmp.versions | vendor documentation | high | www.cisco.com |
| netconf.netconf_version | vendor documentation | high | www.cisco.com |
| gnmi.gnmi_version | vendor documentation | high | www.cisco.com |
Frequently Asked Questions
What is the Cisco ASR-9901?
The Cisco ASR-9901 is a 2U infrastructure device from Cisco Systems. It features 42 network interfaces. The NDX catalog provides enrichment data across 9 categories including lifecycle, thermal, environmental, operational.
What is the form factor of the Cisco ASR-9901?
The Cisco ASR-9901 is a 2U full-depth device. It weighs 25.4 kg.
How many ports does the Cisco ASR-9901 have?
The Cisco ASR-9901 has 42 network interfaces: 24x 10gbase-x-sfpp, 15x 1000base-x-sfp, 2x 100gbase-x-qsfp28, 1x 1000base-t.
Is the Cisco ASR-9901 still supported?
Lifecycle data is available for the Cisco ASR-9901 in the NDX catalog. Access full lifecycle dates including general availability, end-of-sale, and end-of-support through NetBox Cloud or Enterprise.
What operational data is available for the Cisco ASR-9901?
The NDX catalog includes enrichment data for the Cisco ASR-9901 in the following categories: lifecycle, thermal, environmental, operational, platform, snmp, gnmi, netconf, imagery. Full enrichment values are available through NetBox Cloud or Enterprise.
How do I add the Cisco ASR-9901 to NetBox?
You can import the Cisco ASR-9901 directly into NetBox via the NDX features available in NetBox Cloud and NetBox Enterprise. NetBox Community users may download the YAML type definition and import it manually.
Where does the Cisco ASR-9901 data come from?
The Cisco ASR-9901 device type definition originates from the NetBox Community Device Type Library and has been enriched with operational metadata by NetBox Labs.
Related Devices from Cisco Systems
Last verified April 4, 2026.

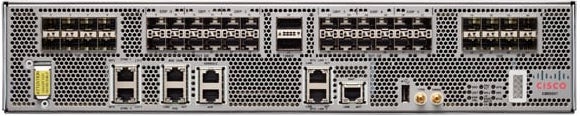

Elevation
