Ubiquiti UniFi Switch Pro Max 48
The Ubiquiti UniFi Switch Pro Max 48 (USW-Pro-Max-48) is a 1U infrastructure device from Ubiquiti. It features 52 network interfaces. The NDX catalog provides enrichment data across 6 categories including thermal, environmental, operational, platform.
Last verified: June 2, 2026
Key Facts
| Manufacturer | Ubiquiti |
|---|---|
| Model | UniFi Switch Pro Max 48 |
| Part Number | USW-Pro-Max-48 |
| Type | Device Type |
| Form Factor | 1U, half-depth |
| Airflow | front-to-rear |
| Weight | 10.8 lb |
| Interfaces | 52 ports |
| Source | Community DTL |
| Enrichment | 6 categories available |
Specifications

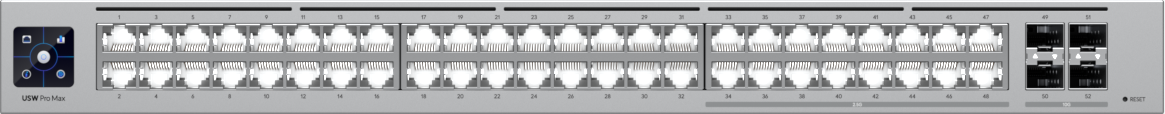

Interfaces (52)
| Name | Type | Mgmt Only | Label |
|---|---|---|---|
| Port 1 | 1000base-t | ||
| Port 2 | 1000base-t | ||
| Port 3 | 1000base-t | ||
| Port 4 | 1000base-t | ||
| Port 5 | 1000base-t | ||
| Port 6 | 1000base-t | ||
| Port 7 | 1000base-t | ||
| Port 8 | 1000base-t | ||
| Port 9 | 1000base-t | ||
| Port 10 | 1000base-t | ||
| Port 11 | 1000base-t | ||
| Port 12 | 1000base-t | ||
| Port 13 | 1000base-t | ||
| Port 14 | 1000base-t | ||
| Port 15 | 1000base-t | ||
| Port 16 | 1000base-t | ||
| Port 17 | 1000base-t | ||
| Port 18 | 1000base-t | ||
| Port 19 | 1000base-t | ||
| Port 20 | 1000base-t | ||
| Port 21 | 1000base-t | ||
| Port 22 | 1000base-t | ||
| Port 23 | 1000base-t | ||
| Port 24 | 1000base-t | ||
| Port 25 | 1000base-t | ||
| Port 26 | 1000base-t | ||
| Port 27 | 1000base-t | ||
| Port 28 | 1000base-t | ||
| Port 29 | 1000base-t | ||
| Port 30 | 1000base-t | ||
| Port 31 | 1000base-t | ||
| Port 32 | 1000base-t | ||
| Port 33 | 2.5gbase-t | ||
| Port 34 | 2.5gbase-t | ||
| Port 35 | 2.5gbase-t | ||
| Port 36 | 2.5gbase-t | ||
| Port 37 | 2.5gbase-t | ||
| Port 38 | 2.5gbase-t | ||
| Port 39 | 2.5gbase-t | ||
| Port 40 | 2.5gbase-t | ||
| Port 41 | 2.5gbase-t | ||
| Port 42 | 2.5gbase-t | ||
| Port 43 | 2.5gbase-t | ||
| Port 44 | 2.5gbase-t | ||
| Port 45 | 2.5gbase-t | ||
| Port 46 | 2.5gbase-t | ||
| Port 47 | 2.5gbase-t | ||
| Port 48 | 2.5gbase-t | ||
| SFP+ 49 | 10gbase-x-sfpp | ||
| SFP+ 50 | 10gbase-x-sfpp | ||
| SFP+ 51 | 10gbase-x-sfpp | ||
| SFP+ 52 | 10gbase-x-sfpp |

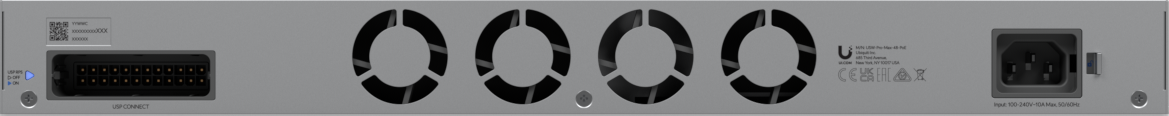

Power Ports (2)
| Name | Type | Max Draw (W) | Allocated (W) |
|---|---|---|---|
| AC Input | iec-60320-c14 | 100 | |
| USP-RPS connector for PSU failover | ubiquiti-smartpower | 100 |
Data Sources & Provenance
| Field | Type | Confidence | Source |
|---|---|---|---|
| environmental.max_operating_temp_c | vendor product page | medium-high | techspecs.ui.com |
| thermal.cooling_type | vendor product page | medium-high | techspecs.ui.com |
| operational.max_power_draw_watts | dtl inferred | medium | github.com |
| environmental.min_operating_temp_c | vendor product page | medium-high | techspecs.ui.com |
| environmental.operating_humidity_min | vendor product page | medium-high | techspecs.ui.com |
| environmental.operating_humidity_max | vendor product page | medium-high | techspecs.ui.com |
| thermal.tdp_watts | dtl inferred | medium | github.com |
| platform.nos | vendor product page | high | ui.com |
| platform.api_types | heuristic | medium | derived from extension blocks and cli_protocol |
| snmp.vendor_oid_prefix | vendor product page | medium-high | community.ui.com |
Frequently Asked Questions
What is the Ubiquiti UniFi Switch Pro Max 48?
The Ubiquiti UniFi Switch Pro Max 48 (USW-Pro-Max-48) is a 1U infrastructure device from Ubiquiti. It features 52 network interfaces. The NDX catalog provides enrichment data across 6 categories including thermal, environmental, operational, platform.
What is the form factor of the Ubiquiti UniFi Switch Pro Max 48?
The Ubiquiti UniFi Switch Pro Max 48 is a 1U half-depth device with front-to-rear airflow. It weighs 10.8 lb.
How many ports does the Ubiquiti UniFi Switch Pro Max 48 have?
The Ubiquiti UniFi Switch Pro Max 48 has 52 network interfaces: 32x 1000base-t, 16x 2.5gbase-t, 4x 10gbase-x-sfpp.
What are the power requirements for the Ubiquiti UniFi Switch Pro Max 48?
The Ubiquiti UniFi Switch Pro Max 48 has 2 power ports (iec-60320-c14, ubiquiti-smartpower). Maximum power draw is 200W.
What operational data is available for the Ubiquiti UniFi Switch Pro Max 48?
The NDX catalog includes enrichment data for the Ubiquiti UniFi Switch Pro Max 48 in the following categories: thermal, environmental, operational, platform, snmp, imagery. Full enrichment values are available through NetBox Cloud or Enterprise.
How do I add the Ubiquiti UniFi Switch Pro Max 48 to NetBox?
You can import the Ubiquiti UniFi Switch Pro Max 48 directly into NetBox via the NDX features available in NetBox Cloud and NetBox Enterprise. NetBox Community users may download the YAML type definition and import it manually.
Where does the Ubiquiti UniFi Switch Pro Max 48 data come from?
The Ubiquiti UniFi Switch Pro Max 48 device type definition originates from the NetBox Community Device Type Library and has been enriched with operational metadata by NetBox Labs.
Related Devices from Ubiquiti
Last verified June 2, 2026.
Elevation


Enrichment Availability
| Category | Available |
|---|---|
| Lifecycle | |
| Thermal | |
| Environmental | |
| Operational | |
| Platform | |
| SNMP | |
| gNMI | |
| NETCONF | |
| Redfish | |
| Modbus | |
| Imagery |
Access full enrichment data with NetBox Cloud or Enterprise.
