Ubiquiti UniFi Switch Pro Max 24
The Ubiquiti UniFi Switch Pro Max 24 (USW-Pro-Max-24) is a 1U infrastructure device from Ubiquiti. It features 26 network interfaces. The NDX catalog provides enrichment data across 6 categories including thermal, environmental, operational, platform.
Last verified: June 2, 2026
Key Facts
| Manufacturer | Ubiquiti |
|---|---|
| Model | UniFi Switch Pro Max 24 |
| Part Number | USW-Pro-Max-24 |
| Type | Device Type |
| Form Factor | 1U, half-depth |
| Airflow | front-to-rear |
| Weight | 9.5 lb |
| Interfaces | 26 ports |
| Source | Community DTL |
| Enrichment | 6 categories available |
Specifications
Interfaces (26)
| Name | Type | Mgmt Only | Label |
|---|---|---|---|
| Port 1 | 1000base-t | ||
| Port 2 | 1000base-t | ||
| Port 3 | 1000base-t | ||
| Port 4 | 1000base-t | ||
| Port 5 | 1000base-t | ||
| Port 6 | 1000base-t | ||
| Port 7 | 1000base-t | ||
| Port 8 | 1000base-t | ||
| Port 9 | 1000base-t | ||
| Port 10 | 1000base-t | ||
| Port 11 | 1000base-t | ||
| Port 12 | 1000base-t | ||
| Port 13 | 1000base-t | ||
| Port 14 | 1000base-t | ||
| Port 15 | 1000base-t | ||
| Port 16 | 1000base-t | ||
| Port 17 | 2.5gbase-t | ||
| Port 18 | 2.5gbase-t | ||
| Port 19 | 2.5gbase-t | ||
| Port 20 | 2.5gbase-t | ||
| Port 21 | 2.5gbase-t | ||
| Port 22 | 2.5gbase-t | ||
| Port 23 | 2.5gbase-t | ||
| Port 24 | 2.5gbase-t | ||
| SFP+ 25 | 10gbase-x-sfpp | ||
| SFP+ 26 | 10gbase-x-sfpp |
Power Ports (2)
| Name | Type | Max Draw (W) | Allocated (W) |
|---|---|---|---|
| AC Input | iec-60320-c14 | 50 | |
| USP-RPS connector for PSU failover | ubiquiti-smartpower | 50 |
Data Sources & Provenance
| Field | Type | Confidence | Source |
|---|---|---|---|
| environmental.max_operating_temp_c | vendor product page | medium-high | techspecs.ui.com |
| thermal.cooling_type | vendor product page | medium-high | techspecs.ui.com |
| operational.max_power_draw_watts | dtl inferred | medium | github.com |
| environmental.min_operating_temp_c | vendor product page | medium-high | techspecs.ui.com |
| environmental.operating_humidity_min | vendor product page | medium-high | techspecs.ui.com |
| environmental.operating_humidity_max | vendor product page | medium-high | techspecs.ui.com |
| thermal.tdp_watts | dtl inferred | medium | github.com |
| platform.nos | vendor product page | high | ui.com |
| platform.api_types | heuristic | medium | derived from extension blocks and cli_protocol |
| snmp.vendor_oid_prefix | vendor product page | medium-high | community.ui.com |
Frequently Asked Questions
What is the Ubiquiti UniFi Switch Pro Max 24?
The Ubiquiti UniFi Switch Pro Max 24 (USW-Pro-Max-24) is a 1U infrastructure device from Ubiquiti. It features 26 network interfaces. The NDX catalog provides enrichment data across 6 categories including thermal, environmental, operational, platform.
What is the form factor of the Ubiquiti UniFi Switch Pro Max 24?
The Ubiquiti UniFi Switch Pro Max 24 is a 1U half-depth device with front-to-rear airflow. It weighs 9.5 lb.
How many ports does the Ubiquiti UniFi Switch Pro Max 24 have?
The Ubiquiti UniFi Switch Pro Max 24 has 26 network interfaces: 16x 1000base-t, 8x 2.5gbase-t, 2x 10gbase-x-sfpp.
What are the power requirements for the Ubiquiti UniFi Switch Pro Max 24?
The Ubiquiti UniFi Switch Pro Max 24 has 2 power ports (iec-60320-c14, ubiquiti-smartpower). Maximum power draw is 100W.
What operational data is available for the Ubiquiti UniFi Switch Pro Max 24?
The NDX catalog includes enrichment data for the Ubiquiti UniFi Switch Pro Max 24 in the following categories: thermal, environmental, operational, platform, snmp, imagery. Full enrichment values are available through NetBox Cloud or Enterprise.
How do I add the Ubiquiti UniFi Switch Pro Max 24 to NetBox?
You can import the Ubiquiti UniFi Switch Pro Max 24 directly into NetBox via the NDX features available in NetBox Cloud and NetBox Enterprise. NetBox Community users may download the YAML type definition and import it manually.
Where does the Ubiquiti UniFi Switch Pro Max 24 data come from?
The Ubiquiti UniFi Switch Pro Max 24 device type definition originates from the NetBox Community Device Type Library and has been enriched with operational metadata by NetBox Labs.
Related Devices from Ubiquiti
Last verified June 2, 2026.

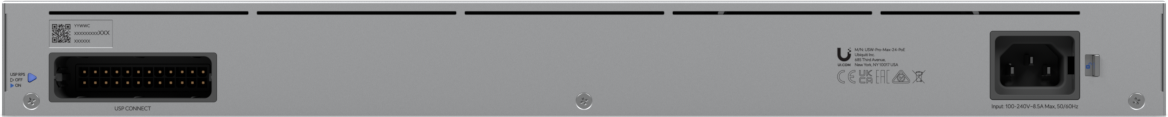

Elevation
