Ubiquiti UniFi Switch Aggregation
The Ubiquiti UniFi Switch Aggregation (USW-Aggregation) is a 1U infrastructure device from Ubiquiti. It features 8 network interfaces. The NDX catalog provides enrichment data across 6 categories including thermal, environmental, operational, platform.
Last verified: April 4, 2026
Key Facts
| Manufacturer | Ubiquiti |
|---|---|
| Model | UniFi Switch Aggregation |
| Part Number | USW-Aggregation |
| Type | Device Type |
| Form Factor | 1U, half-depth |
| Airflow | passive |
| Weight | 2.7 kg |
| Interfaces | 8 ports |
| Source | Community DTL |
| Enrichment | 6 categories available |
Specifications
Interfaces (8)
| Name | Type | Mgmt Only | Label |
|---|---|---|---|
| SFP+ 1 | 10gbase-x-sfpp | ||
| SFP+ 2 | 10gbase-x-sfpp | ||
| SFP+ 3 | 10gbase-x-sfpp | ||
| SFP+ 4 | 10gbase-x-sfpp | ||
| SFP+ 5 | 10gbase-x-sfpp | ||
| SFP+ 6 | 10gbase-x-sfpp | ||
| SFP+ 7 | 10gbase-x-sfpp | ||
| SFP+ 8 | 10gbase-x-sfpp |
Power Ports (1)
| Name | Type | Max Draw (W) | Allocated (W) |
|---|---|---|---|
| Input | iec-60320-c14 | 36 |
Data Sources & Provenance
| Field | Type | Confidence | Source |
|---|---|---|---|
| environmental.max_operating_temp_c | vendor product page | medium-high | techspecs.ui.com |
| thermal.cooling_type | vendor product page | medium-high | techspecs.ui.com |
| operational.max_power_draw_watts | vendor datasheet | high | dl.ubnt.com |
| environmental.min_operating_temp_c | vendor datasheet | high | dl.ubnt.com |
| environmental.operating_humidity_min | vendor datasheet | high | dl.ubnt.com |
| environmental.operating_humidity_max | vendor datasheet | high | dl.ubnt.com |
| platform.nos | vendor product page | high | ui.com |
| platform.api_types | heuristic | medium | derived from extension blocks and cli_protocol |
| snmp.vendor_oid_prefix | vendor product page | medium-high | community.ui.com |
Frequently Asked Questions
What is the Ubiquiti UniFi Switch Aggregation?
The Ubiquiti UniFi Switch Aggregation (USW-Aggregation) is a 1U infrastructure device from Ubiquiti. It features 8 network interfaces. The NDX catalog provides enrichment data across 6 categories including thermal, environmental, operational, platform.
What is the form factor of the Ubiquiti UniFi Switch Aggregation?
The Ubiquiti UniFi Switch Aggregation is a 1U half-depth device with passive airflow. It weighs 2.7 kg.
How many ports does the Ubiquiti UniFi Switch Aggregation have?
The Ubiquiti UniFi Switch Aggregation has 8 network interfaces: 8x 10gbase-x-sfpp.
What are the power requirements for the Ubiquiti UniFi Switch Aggregation?
The Ubiquiti UniFi Switch Aggregation has 1 power port (iec-60320-c14). Maximum power draw is 36W.
What operational data is available for the Ubiquiti UniFi Switch Aggregation?
The NDX catalog includes enrichment data for the Ubiquiti UniFi Switch Aggregation in the following categories: thermal, environmental, operational, platform, snmp, imagery. Full enrichment values are available through NetBox Cloud or Enterprise.
How do I add the Ubiquiti UniFi Switch Aggregation to NetBox?
You can import the Ubiquiti UniFi Switch Aggregation directly into NetBox via the NDX features available in NetBox Cloud and NetBox Enterprise. NetBox Community users may download the YAML type definition and import it manually.
Where does the Ubiquiti UniFi Switch Aggregation data come from?
The Ubiquiti UniFi Switch Aggregation device type definition originates from the NetBox Community Device Type Library and has been enriched with operational metadata by NetBox Labs.
Related Devices from Ubiquiti
Last verified April 4, 2026.

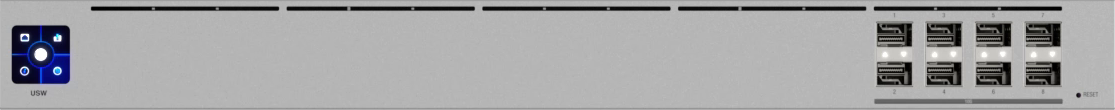

Elevation
Enrichment Availability
| Category | Available |
|---|---|
| Lifecycle | |
| Thermal | |
| Environmental | |
| Operational | |
| Platform | |
| SNMP | |
| gNMI | |
| NETCONF | |
| Redfish | |
| Modbus | |
| Imagery |
Access full enrichment data with NetBox Cloud or Enterprise.
