Sophos XGS 136
The Sophos XGS 136 is a 1U infrastructure device from Sophos. It features 14 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, operational.
Last verified: April 4, 2026
Key Facts
| Manufacturer | Sophos |
|---|---|
| Model | XGS 136 |
| Type | Device Type |
| Form Factor | 1U, half-depth |
| Airflow | left-to-right |
| Weight | 2.4 kg |
| Interfaces | 14 ports |
| Source | Community DTL |
| Enrichment | 7 categories available |
Specifications
Interfaces (14)
| Name | Type | Mgmt Only | Label |
|---|---|---|---|
| PortF1 | 1000base-x-sfp | ||
| PortF2 | 1000base-x-sfp | ||
| Port1 | 1000base-t | ||
| Port2 | 1000base-t | ||
| Port3 | 1000base-t | ||
| Port4 | 1000base-t | ||
| Port5 | 1000base-t | ||
| Port6 | 1000base-t | ||
| Port7 | 1000base-t | ||
| Port8 | 1000base-t | ||
| Port9 | 1000base-t | ||
| Port10 | 1000base-t | ||
| Port11 | 2.5gbase-t | ||
| Port12 | 2.5gbase-t |
Power Ports (2)
| Name | Type | Max Draw (W) | Allocated (W) |
|---|---|---|---|
| DC In 1 | other | 76 | 30 |
| DC In 2 | other | 76 | 30 |
Console Ports (2)
| Name | Type |
|---|---|
| COM Serial | rj-45 |
| COM USB | usb-micro-b |
Module Bays (1)
| Name | Position | Label |
|---|---|---|
| A | A |
Data Sources & Provenance
| Field | Type | Confidence | Source |
|---|---|---|---|
| thermal.tdp_watts | partner specs | medium | www.enterpriseav.com |
| environmental.max_operating_temp_c | partner specs | medium | www.enterpriseav.com |
| thermal.cooling_type | partner specs | medium | www.enterpriseav.com |
| operational.typical_power_draw_watts | partner specs | medium | www.enterpriseav.com |
| operational.max_power_draw_watts | partner specs | medium | www.enterpriseav.com |
| lifecycle.ga_date | vendor product page | medium-high | www.sophos.com |
| environmental.min_operating_temp_c | vendor documentation | high | docs.sophos.com |
| environmental.operating_humidity_min | vendor documentation | high | docs.sophos.com |
| environmental.operating_humidity_max | vendor documentation | high | docs.sophos.com |
| environmental.operating_altitude_m | vendor documentation | high | docs.sophos.com |
| lifecycle.eos_date | vendor eol bulletin | high | partnernews.sophos.com |
| lifecycle.last_support_date | vendor eol bulletin | high | partnernews.sophos.com |
| lifecycle.eol_announced | vendor eol bulletin | high | partnernews.sophos.com |
| snmp.versions | vendor documentation | high | docs.sophos.com |
| snmp.vendor_oid_prefix | third party | high | www.iana.org |
| platform.nos | vendor product page | high | docs.sophos.com |
| platform.api_types | heuristic | medium | derived from extension blocks and cli_protocol |
Frequently Asked Questions
What is the Sophos XGS 136?
The Sophos XGS 136 is a 1U infrastructure device from Sophos. It features 14 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, operational.
What is the form factor of the Sophos XGS 136?
The Sophos XGS 136 is a 1U half-depth device with left-to-right airflow. It weighs 2.4 kg.
How many ports does the Sophos XGS 136 have?
The Sophos XGS 136 has 14 network interfaces: 10x 1000base-t, 2x 1000base-x-sfp, 2x 2.5gbase-t.
What are the power requirements for the Sophos XGS 136?
The Sophos XGS 136 has 2 power ports (other, other). Maximum power draw is 152W.
Is the Sophos XGS 136 still supported?
Lifecycle data is available for the Sophos XGS 136 in the NDX catalog. Access full lifecycle dates including general availability, end-of-sale, and end-of-support through NetBox Cloud or Enterprise.
What operational data is available for the Sophos XGS 136?
The NDX catalog includes enrichment data for the Sophos XGS 136 in the following categories: lifecycle, thermal, environmental, operational, platform, snmp, imagery. Full enrichment values are available through NetBox Cloud or Enterprise.
How do I add the Sophos XGS 136 to NetBox?
You can import the Sophos XGS 136 directly into NetBox via the NDX features available in NetBox Cloud and NetBox Enterprise. NetBox Community users may download the YAML type definition and import it manually.
Where does the Sophos XGS 136 data come from?
The Sophos XGS 136 device type definition originates from the NetBox Community Device Type Library and has been enriched with operational metadata by NetBox Labs.
Related Devices from Sophos
Last verified April 4, 2026.

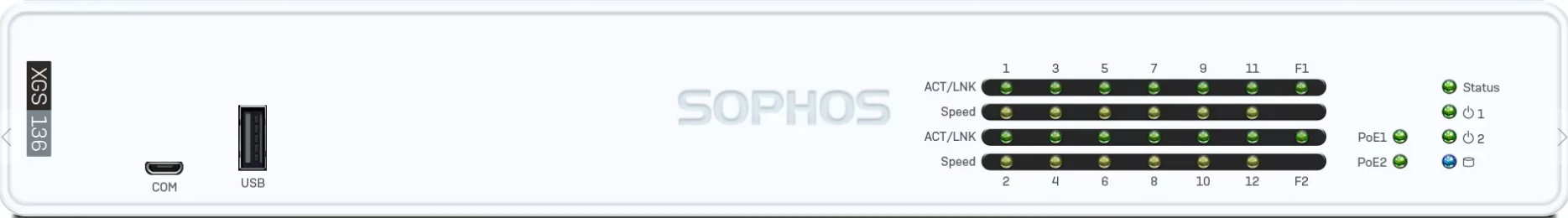

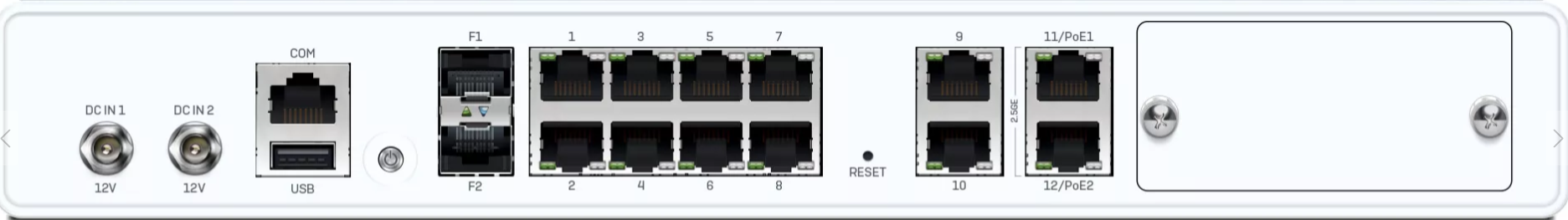

Elevation
Enrichment Availability
| Category | Available |
|---|---|
| Lifecycle | |
| Thermal | |
| Environmental | |
| Operational | |
| Platform | |
| SNMP | |
| gNMI | |
| NETCONF | |
| Redfish | |
| Modbus | |
| Imagery |
Access full enrichment data with NetBox Cloud or Enterprise.
