APC AP4423A
The APC AP4423A is a 1U infrastructure device from Schneider Electric. It features 1 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, platform.
Last verified: April 5, 2026
Key Facts
| Manufacturer | Schneider Electric |
|---|---|
| Model | AP4423A |
| Part Number | AP4423A |
| Type | Device Type |
| Form Factor | 1U, half-depth |
| Airflow | passive |
| Weight | 3.74 kg |
| Interfaces | 1 ports |
| Source | Community DTL |
| Enrichment | 7 categories available |
Specifications
Interfaces (1)
| Name | Type | Mgmt Only | Label |
|---|---|---|---|
| Management | 1000base-t | true |
Power Ports (2)
| Name | Type | Max Draw (W) | Allocated (W) |
|---|---|---|---|
| Source A | iec-60320-c20 | ||
| Source B | iec-60320-c20 |
Console Ports (1)
| Name | Type |
|---|---|
| Serial | usb-micro-b |
Power Outlets (9)
| Name | Type | Feed Leg |
|---|---|---|
| Outlet 1 | iec-60320-c19 | |
| Outlet 2 | iec-60320-c13 | |
| Outlet 3 | iec-60320-c13 | |
| Outlet 4 | iec-60320-c13 | |
| Outlet 5 | iec-60320-c13 | |
| Outlet 6 | iec-60320-c13 | |
| Outlet 7 | iec-60320-c13 | |
| Outlet 8 | iec-60320-c13 | |
| Outlet 9 | iec-60320-c13 |
Data Sources & Provenance
| Field | Type | Confidence | Source |
|---|---|---|---|
| lifecycle.ga_date | vendor product page | medium | www.se.com |
| environmental.max_operating_temp_c | vendor product page | medium-high | www.se.com |
| thermal.cooling_type | vendor product page | medium-high | www.se.com |
| environmental.min_operating_temp_c | vendor product page | medium-high | www.se.com |
| environmental.operating_humidity_min | vendor product page | medium-high | www.se.com |
| environmental.operating_humidity_max | vendor product page | medium-high | www.se.com |
| environmental.operating_altitude_m | vendor product page | medium-high | www.se.com |
| snmp.sys_object_id | vendor documentation | medium-high | data/schneider-electric/snmp-profiles/apc-ats.snmp.yaml |
| snmp.versions | vendor product page | medium-high | www.se.com |
| snmp.mibs | vendor documentation | medium-high | data/schneider-electric/snmp-profiles/apc-ats.snmp.yaml |
| platform.nos | vendor product page | medium-high | www.se.com |
| platform.api_types | heuristic | medium | derived from extension blocks and cli_protocol |
| platform.nos_family | heuristic | medium | tools/fix_nos_family_gap.py |
| modbus.protocol | vendor documentation | medium-high | www.se.com |
| modbus.registers | third party | medium | seeded from orb-dcim profile apc-modular-pdu (Apache 2.0) |
Frequently Asked Questions
What is the APC AP4423A?
The APC AP4423A is a 1U infrastructure device from Schneider Electric. It features 1 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, platform.
What is the form factor of the APC AP4423A?
The APC AP4423A is a 1U half-depth device with passive airflow. It weighs 3.74 kg.
How many ports does the APC AP4423A have?
The APC AP4423A has 1 network interfaces: 1x 1000base-t.
What are the power requirements for the APC AP4423A?
The APC AP4423A has 2 power ports (iec-60320-c20, iec-60320-c20).
Is the APC AP4423A still supported?
Lifecycle data is available for the APC AP4423A in the NDX catalog. Access full lifecycle dates including general availability, end-of-sale, and end-of-support through NetBox Cloud or Enterprise.
What operational data is available for the APC AP4423A?
The NDX catalog includes enrichment data for the APC AP4423A in the following categories: lifecycle, thermal, environmental, platform, snmp, modbus, imagery. Full enrichment values are available through NetBox Cloud or Enterprise.
How do I add the APC AP4423A to NetBox?
You can import the APC AP4423A directly into NetBox via the NDX features available in NetBox Cloud and NetBox Enterprise. NetBox Community users may download the YAML type definition and import it manually.
Where does the APC AP4423A data come from?
The APC AP4423A device type definition originates from the NetBox Community Device Type Library and has been enriched with operational metadata by NetBox Labs.
Related Devices from Schneider Electric
Last verified April 5, 2026.

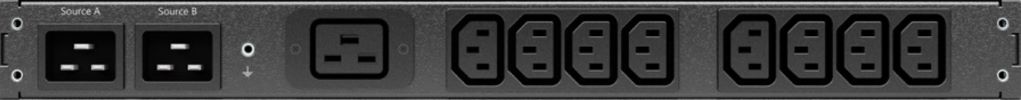

Elevation
Enrichment Availability
| Category | Available |
|---|---|
| Lifecycle | |
| Thermal | |
| Environmental | |
| Operational | |
| Platform | |
| SNMP | |
| gNMI | |
| NETCONF | |
| Redfish | |
| Modbus | |
| Imagery |
Access full enrichment data with NetBox Cloud or Enterprise.
