Mellanox SN2100
The Mellanox SN2100 is a 1U infrastructure device from NVIDIA. It features 17 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, operational.
Last verified: June 2, 2026
Key Facts
| Manufacturer | NVIDIA |
|---|---|
| Model | SN2100 |
| Type | Device Type |
| Form Factor | 1U, half-depth |
| Weight | 4.54 kg |
| Interfaces | 17 ports |
| Source | Community DTL |
| Enrichment | 7 categories available |
Specifications
Interfaces (17)
| Name | Type | Mgmt Only | Label |
|---|---|---|---|
| eth0 | 1000base-t | ||
| swp1 | 100gbase-x-qsfp28 | ||
| swp2 | 100gbase-x-qsfp28 | ||
| swp3 | 100gbase-x-qsfp28 | ||
| swp4 | 100gbase-x-qsfp28 | ||
| swp5 | 100gbase-x-qsfp28 | ||
| swp6 | 100gbase-x-qsfp28 | ||
| swp7 | 100gbase-x-qsfp28 | ||
| swp8 | 100gbase-x-qsfp28 | ||
| swp9 | 100gbase-x-qsfp28 | ||
| swp10 | 100gbase-x-qsfp28 | ||
| swp11 | 100gbase-x-qsfp28 | ||
| swp12 | 100gbase-x-qsfp28 | ||
| swp13 | 100gbase-x-qsfp28 | ||
| swp14 | 100gbase-x-qsfp28 | ||
| swp15 | 100gbase-x-qsfp28 | ||
| swp16 | 100gbase-x-qsfp28 |
Console Ports (1)
| Name | Type |
|---|---|
| con0 | usb-mini-a |
Module Bays (2)
| Name | Position | Label |
|---|---|---|
| PSU1 | PSU1 | |
| PSU2 | PSU2 |
Data Sources & Provenance
| Field | Type | Confidence | Source |
|---|---|---|---|
| environmental.max_operating_temp_c | vendor documentation | medium-high | docs.nvidia.com |
| lifecycle.ga_date | vendor datasheet | high | network.nvidia.com |
| operational.typical_power_draw_watts | vendor documentation | medium-high | docs.nvidia.com |
| thermal.cooling_type | heuristic | low | ndx-pipeline-classification |
| environmental.min_operating_temp_c | vendor documentation | high | docs.nvidia.com |
| environmental.operating_humidity_min | vendor documentation | high | docs.nvidia.com |
| environmental.operating_humidity_max | vendor documentation | high | docs.nvidia.com |
| environmental.operating_altitude_m | vendor documentation | high | docs.nvidia.com |
| lifecycle.eol_announced | vendor eol bulletin | medium-high | network.nvidia.com |
| lifecycle.eos_date | vendor eol bulletin | medium-high | network.nvidia.com |
| lifecycle.last_support_date | vendor eol bulletin | medium-high | network.nvidia.com |
| thermal.tdp_watts | vendor documentation | medium-high | docs.nvidia.com |
| snmp.versions | vendor documentation | high | docs.nvidia.com |
| snmp.vendor_oid_prefix | third party | high | www.iana.org |
| platform.nos | vendor documentation | high | docs.nvidia.com |
| platform.api_types | heuristic | medium | derived from extension blocks and cli_protocol |
Frequently Asked Questions
What is the Mellanox SN2100?
The Mellanox SN2100 is a 1U infrastructure device from NVIDIA. It features 17 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, operational.
What is the form factor of the Mellanox SN2100?
The Mellanox SN2100 is a 1U half-depth device. It weighs 4.54 kg.
How many ports does the Mellanox SN2100 have?
The Mellanox SN2100 has 17 network interfaces: 16x 100gbase-x-qsfp28, 1x 1000base-t.
Is the Mellanox SN2100 still supported?
Lifecycle data is available for the Mellanox SN2100 in the NDX catalog. Access full lifecycle dates including general availability, end-of-sale, and end-of-support through NetBox Cloud or Enterprise.
What operational data is available for the Mellanox SN2100?
The NDX catalog includes enrichment data for the Mellanox SN2100 in the following categories: lifecycle, thermal, environmental, operational, platform, snmp, imagery. Full enrichment values are available through NetBox Cloud or Enterprise.
How do I add the Mellanox SN2100 to NetBox?
You can import the Mellanox SN2100 directly into NetBox via the NDX features available in NetBox Cloud and NetBox Enterprise. NetBox Community users may download the YAML type definition and import it manually.
Where does the Mellanox SN2100 data come from?
The Mellanox SN2100 device type definition originates from the NetBox Community Device Type Library and has been enriched with operational metadata by NetBox Labs.
Related Devices from NVIDIA
Last verified June 2, 2026.

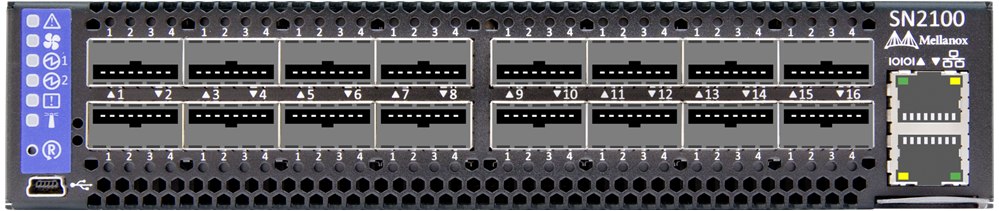

Elevation
Enrichment Availability
| Category | Available |
|---|---|
| Lifecycle | |
| Thermal | |
| Environmental | |
| Operational | |
| Platform | |
| SNMP | |
| gNMI | |
| NETCONF | |
| Redfish | |
| Modbus | |
| Imagery |
Access full enrichment data with NetBox Cloud or Enterprise.
