Juniper QFX10002-36Q
The Juniper QFX10002-36Q is a 2U infrastructure device from Juniper Networks. It features 38 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, platform.
Last verified: April 4, 2026
Key Facts
| Manufacturer | Juniper Networks |
|---|---|
| Model | QFX10002-36Q |
| Part Number | QFX10002-36Q |
| Type | Device Type |
| Form Factor | 2U, full-depth |
| Airflow | front-to-rear |
| Weight | 54 lb |
| Interfaces | 38 ports |
| Source | Community DTL |
| Enrichment | 7 categories available |
Specifications
Interfaces (38)
| Name | Type | Mgmt Only | Label |
|---|---|---|---|
| em0 | 1000base-t | true | |
| em1 | 1000base-x-sfp | true | |
| et-0/0/0 | 40gbase-x-qsfpp | ||
| et-0/0/1 | 40gbase-x-qsfpp | ||
| et-0/0/2 | 40gbase-x-qsfpp | ||
| et-0/0/3 | 40gbase-x-qsfpp | ||
| et-0/0/4 | 40gbase-x-qsfpp | ||
| et-0/0/5 | 40gbase-x-qsfpp | ||
| et-0/0/6 | 40gbase-x-qsfpp | ||
| et-0/0/7 | 40gbase-x-qsfpp | ||
| et-0/0/8 | 40gbase-x-qsfpp | ||
| et-0/0/9 | 40gbase-x-qsfpp | ||
| et-0/0/10 | 40gbase-x-qsfpp | ||
| et-0/0/11 | 40gbase-x-qsfpp | ||
| et-0/0/12 | 40gbase-x-qsfpp | ||
| et-0/0/13 | 40gbase-x-qsfpp | ||
| et-0/0/14 | 40gbase-x-qsfpp | ||
| et-0/0/15 | 40gbase-x-qsfpp | ||
| et-0/0/16 | 40gbase-x-qsfpp | ||
| et-0/0/17 | 40gbase-x-qsfpp | ||
| et-0/0/18 | 40gbase-x-qsfpp | ||
| et-0/0/19 | 40gbase-x-qsfpp | ||
| et-0/0/20 | 40gbase-x-qsfpp | ||
| et-0/0/21 | 40gbase-x-qsfpp | ||
| et-0/0/22 | 40gbase-x-qsfpp | ||
| et-0/0/23 | 40gbase-x-qsfpp | ||
| et-0/0/24 | 40gbase-x-qsfpp | ||
| et-0/0/25 | 40gbase-x-qsfpp | ||
| et-0/0/26 | 40gbase-x-qsfpp | ||
| et-0/0/27 | 40gbase-x-qsfpp | ||
| et-0/0/28 | 40gbase-x-qsfpp | ||
| et-0/0/29 | 40gbase-x-qsfpp | ||
| et-0/0/30 | 40gbase-x-qsfpp | ||
| et-0/0/31 | 40gbase-x-qsfpp | ||
| et-0/0/32 | 40gbase-x-qsfpp | ||
| et-0/0/33 | 40gbase-x-qsfpp | ||
| et-0/0/34 | 40gbase-x-qsfpp | ||
| et-0/0/35 | 40gbase-x-qsfpp |
Console Ports (1)
| Name | Type |
|---|---|
| Console | rj-45 |
Module Bays (2)
| Name | Position | Label |
|---|---|---|
| PSU 0 | 0 | |
| PSU 1 | 1 |
Data Sources & Provenance
| Field | Type | Confidence | Source |
|---|---|---|---|
| lifecycle.ga_date | vendor product page | medium-high | www.juniper.net |
| environmental.max_operating_temp_c | vendor datasheet | high | www.juniper.net |
| thermal.cooling_type | vendor datasheet | high | www.juniper.net |
| environmental.min_operating_temp_c | vendor datasheet | high | www.juniper.net |
| environmental.operating_humidity_min | vendor datasheet | high | www.juniper.net |
| environmental.operating_humidity_max | vendor datasheet | high | www.juniper.net |
| environmental.operating_altitude_m | vendor datasheet | high | www.juniper.net |
| lifecycle.last_support_date | third party | medium | eosl.date |
| lifecycle.eol_announced | vendor eol bulletin | high | support.juniper.net |
| lifecycle.eos_date | vendor eol bulletin | high | support.juniper.net |
| lifecycle.eosw_date | vendor eol bulletin | high | support.juniper.net |
| platform.nos | vendor product page | high | www.juniper.net |
| platform.api_types | heuristic | medium | derived from extension blocks and cli_protocol |
| snmp.vendor_oid_prefix | vendor documentation | high | www.juniper.net |
| netconf.netconf_version | vendor documentation | high | www.juniper.net |
Frequently Asked Questions
What is the Juniper QFX10002-36Q?
The Juniper QFX10002-36Q is a 2U infrastructure device from Juniper Networks. It features 38 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, platform.
What is the form factor of the Juniper QFX10002-36Q?
The Juniper QFX10002-36Q is a 2U full-depth device with front-to-rear airflow. It weighs 54 lb.
How many ports does the Juniper QFX10002-36Q have?
The Juniper QFX10002-36Q has 38 network interfaces: 36x 40gbase-x-qsfpp, 1x 1000base-t, 1x 1000base-x-sfp.
Is the Juniper QFX10002-36Q still supported?
Lifecycle data is available for the Juniper QFX10002-36Q in the NDX catalog. Access full lifecycle dates including general availability, end-of-sale, and end-of-support through NetBox Cloud or Enterprise.
What operational data is available for the Juniper QFX10002-36Q?
The NDX catalog includes enrichment data for the Juniper QFX10002-36Q in the following categories: lifecycle, thermal, environmental, platform, snmp, netconf, imagery. Full enrichment values are available through NetBox Cloud or Enterprise.
How do I add the Juniper QFX10002-36Q to NetBox?
You can import the Juniper QFX10002-36Q directly into NetBox via the NDX features available in NetBox Cloud and NetBox Enterprise. NetBox Community users may download the YAML type definition and import it manually.
Where does the Juniper QFX10002-36Q data come from?
The Juniper QFX10002-36Q device type definition originates from the NetBox Community Device Type Library and has been enriched with operational metadata by NetBox Labs.
Related Devices from Juniper Networks
Last verified April 4, 2026.

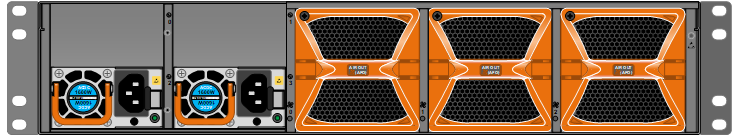

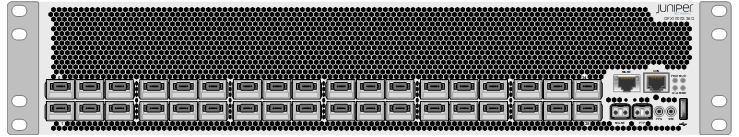

Elevation
