Huawei S5735-L8P4S-A1
The Huawei S5735-L8P4S-A1 (98011295) is a 1U infrastructure device from Huawei. It features 12 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, operational.
Last verified: April 4, 2026
Key Facts
| Manufacturer | Huawei |
|---|---|
| Model | S5735-L8P4S-A1 |
| Part Number | 98011295 |
| Type | Device Type |
| Form Factor | 1U, half-depth |
| Airflow | left-to-right |
| Weight | 2.25 kg |
| Interfaces | 12 ports |
| Source | Community DTL |
| Enrichment | 7 categories available |
Specifications
Interfaces (12)
| Name | Type | Mgmt Only | Label |
|---|---|---|---|
| GigabitEthernet0/0/1 | 1000base-t | false | |
| GigabitEthernet0/0/2 | 1000base-t | false | |
| GigabitEthernet0/0/3 | 1000base-t | false | |
| GigabitEthernet0/0/4 | 1000base-t | false | |
| GigabitEthernet0/0/5 | 1000base-t | false | |
| GigabitEthernet0/0/6 | 1000base-t | false | |
| GigabitEthernet0/0/7 | 1000base-t | false | |
| GigabitEthernet0/0/8 | 1000base-t | false | |
| GigabitEthernet0/0/9 | 1000base-x-sfp | false | |
| GigabitEthernet0/0/10 | 1000base-x-sfp | false | |
| GigabitEthernet0/0/11 | 1000base-x-sfp | false | |
| GigabitEthernet0/0/12 | 1000base-x-sfp | false |
Power Ports (1)
| Name | Type | Max Draw (W) | Allocated (W) |
|---|---|---|---|
| PSU | iec-60320-c14 | 163 |
Console Ports (1)
| Name | Type |
|---|---|
| Console | rj-45 |
Data Sources & Provenance
| Field | Type | Confidence | Source |
|---|---|---|---|
| thermal.tdp_watts | vendor datasheet | high | www.router-switch.com |
| environmental.max_operating_temp_c | vendor datasheet | high | www.router-switch.com |
| thermal.cooling_type | vendor datasheet | high | www.router-switch.com |
| lifecycle.ga_date | vendor product page | medium-high | e.huawei.com |
| environmental.min_operating_temp_c | vendor datasheet | high | www.router-switch.com |
| environmental.operating_humidity_min | vendor datasheet | high | www.router-switch.com |
| environmental.operating_humidity_max | vendor datasheet | high | www.router-switch.com |
| environmental.operating_altitude_m | vendor datasheet | high | www.router-switch.com |
| operational.typical_power_draw_watts | vendor datasheet | high | www.router-switch.com |
| operational.max_power_draw_watts | vendor datasheet | high | www.router-switch.com |
| operational.noise_level_dba | vendor datasheet | high | www.router-switch.com |
| platform.nos | vendor product page | high | e.huawei.com |
| platform.api_types | heuristic | medium | derived from extension blocks and cli_protocol |
| snmp.profile | vendor documentation | medium-high | support.huawei.com |
| snmp.vendor_oid_prefix | vendor documentation | high | support.huawei.com |
Frequently Asked Questions
What is the Huawei S5735-L8P4S-A1?
The Huawei S5735-L8P4S-A1 (98011295) is a 1U infrastructure device from Huawei. It features 12 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, operational.
What is the form factor of the Huawei S5735-L8P4S-A1?
The Huawei S5735-L8P4S-A1 is a 1U half-depth device with left-to-right airflow. It weighs 2.25 kg.
How many ports does the Huawei S5735-L8P4S-A1 have?
The Huawei S5735-L8P4S-A1 has 12 network interfaces: 8x 1000base-t, 4x 1000base-x-sfp.
What are the power requirements for the Huawei S5735-L8P4S-A1?
The Huawei S5735-L8P4S-A1 has 1 power port (iec-60320-c14). Maximum power draw is 163W.
Is the Huawei S5735-L8P4S-A1 still supported?
Lifecycle data is available for the Huawei S5735-L8P4S-A1 in the NDX catalog. Access full lifecycle dates including general availability, end-of-sale, and end-of-support through NetBox Cloud or Enterprise.
What operational data is available for the Huawei S5735-L8P4S-A1?
The NDX catalog includes enrichment data for the Huawei S5735-L8P4S-A1 in the following categories: lifecycle, thermal, environmental, operational, platform, snmp, imagery. Full enrichment values are available through NetBox Cloud or Enterprise.
How do I add the Huawei S5735-L8P4S-A1 to NetBox?
You can import the Huawei S5735-L8P4S-A1 directly into NetBox via the NDX features available in NetBox Cloud and NetBox Enterprise. NetBox Community users may download the YAML type definition and import it manually.
Where does the Huawei S5735-L8P4S-A1 data come from?
The Huawei S5735-L8P4S-A1 device type definition originates from the NetBox Community Device Type Library and has been enriched with operational metadata by NetBox Labs.
Related Devices from Huawei
Last verified April 4, 2026.

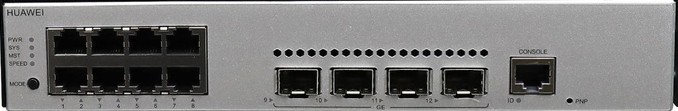

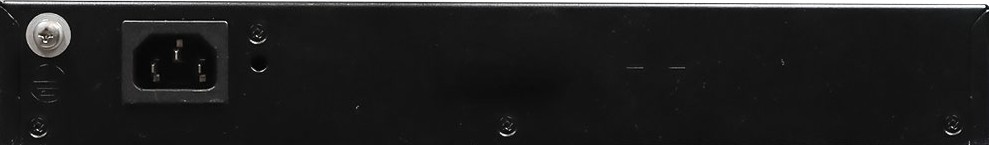

Elevation
Enrichment Availability
| Category | Available |
|---|---|
| Lifecycle | |
| Thermal | |
| Environmental | |
| Operational | |
| Platform | |
| SNMP | |
| gNMI | |
| NETCONF | |
| Redfish | |
| Modbus | |
| Imagery |
Access full enrichment data with NetBox Cloud or Enterprise.
