Huawei NE8000 F1A-8H20Q
The Huawei NE8000 F1A-8H20Q (02353AES) is a 1U infrastructure device from Huawei. It features 57 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, operational.
Last verified: April 4, 2026
Key Facts
| Manufacturer | Huawei |
|---|---|
| Model | NE8000 F1A-8H20Q |
| Part Number | 02353AES |
| Type | Device Type |
| Form Factor | 1U, full-depth |
| Airflow | front-to-rear |
| Weight | 6.3 kg |
| Interfaces | 57 ports |
| Source | Community DTL |
| Enrichment | 7 categories available |
Specifications
Interfaces (57)
| Name | Type | Mgmt Only | Label |
|---|---|---|---|
| MEth0/0/0 | 1000base-t | true | |
| XGigabitEthernet0/0/0 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/1 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/2 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/3 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/4 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/5 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/6 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/7 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/8 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/9 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/10 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/11 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/12 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/13 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/14 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/15 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/16 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/17 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/18 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/19 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/20 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/21 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/22 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/23 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/24 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/25 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/26 | 10gbase-x-sfpp | ||
| XGigabitEthernet0/0/27 | 10gbase-x-sfpp | ||
| 25GE0/0/28 | 25gbase-x-sfp28 | ||
| 25GE0/0/29 | 25gbase-x-sfp28 | ||
| 25GE0/0/30 | 25gbase-x-sfp28 | ||
| 25GE0/0/31 | 25gbase-x-sfp28 | ||
| 25GE0/0/32 | 25gbase-x-sfp28 | ||
| 25GE0/0/33 | 25gbase-x-sfp28 | ||
| 25GE0/0/34 | 25gbase-x-sfp28 | ||
| 25GE0/0/35 | 25gbase-x-sfp28 | ||
| 25GE0/0/36 | 25gbase-x-sfp28 | ||
| 25GE0/0/37 | 25gbase-x-sfp28 | ||
| 25GE0/0/38 | 25gbase-x-sfp28 | ||
| 25GE0/0/39 | 25gbase-x-sfp28 | ||
| 25GE0/0/40 | 25gbase-x-sfp28 | ||
| 25GE0/0/41 | 25gbase-x-sfp28 | ||
| 25GE0/0/42 | 25gbase-x-sfp28 | ||
| 25GE0/0/43 | 25gbase-x-sfp28 | ||
| 25GE0/0/44 | 25gbase-x-sfp28 | ||
| 25GE0/0/45 | 25gbase-x-sfp28 | ||
| 25GE0/0/46 | 25gbase-x-sfp28 | ||
| 25GE0/0/47 | 25gbase-x-sfp28 | ||
| 100GE0/0/48 | 100gbase-x-qsfp28 | ||
| 100GE0/0/49 | 100gbase-x-qsfp28 | ||
| 100GE0/0/50 | 100gbase-x-qsfp28 | ||
| 100GE0/0/51 | 100gbase-x-qsfp28 | ||
| 100GE0/0/52 | 100gbase-x-qsfp28 | ||
| 100GE0/0/53 | 100gbase-x-qsfp28 | ||
| 100GE0/0/54 | 100gbase-x-qsfp28 | ||
| 100GE0/0/55 | 100gbase-x-qsfp28 |
Module Bays (2)
| Name | Position | Label |
|---|---|---|
| PSU 1 | 1 | |
| PSU 2 | 2 |
Data Sources & Provenance
| Field | Type | Confidence | Source |
|---|---|---|---|
| thermal.tdp_watts | vendor product page | medium-high | e.huawei.com |
| environmental.max_operating_temp_c | vendor product page | medium-high | e.huawei.com |
| thermal.cooling_type | vendor product page | medium-high | e.huawei.com |
| lifecycle.ga_date | vendor product page | medium-high | e.huawei.com |
| environmental.min_operating_temp_c | vendor product page | medium-high | e.huawei.com |
| environmental.operating_humidity_min | vendor product page | medium-high | e.huawei.com |
| environmental.operating_humidity_max | vendor product page | medium-high | e.huawei.com |
| environmental.operating_altitude_m | vendor product page | medium-high | e.huawei.com |
| operational.typical_power_draw_watts | vendor product page | medium-high | e.huawei.com |
| operational.max_power_draw_watts | vendor product page | medium-high | e.huawei.com |
| operational.noise_level_dba | vendor product page | medium-high | e.huawei.com |
| snmp.profile | vendor documentation | medium-high | support.huawei.com |
| platform.nos | vendor product page | high | e.huawei.com |
| platform.api_types | heuristic | medium | derived from extension blocks and cli_protocol |
Frequently Asked Questions
What is the Huawei NE8000 F1A-8H20Q?
The Huawei NE8000 F1A-8H20Q (02353AES) is a 1U infrastructure device from Huawei. It features 57 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, operational.
What is the form factor of the Huawei NE8000 F1A-8H20Q?
The Huawei NE8000 F1A-8H20Q is a 1U full-depth device with front-to-rear airflow. It weighs 6.3 kg.
How many ports does the Huawei NE8000 F1A-8H20Q have?
The Huawei NE8000 F1A-8H20Q has 57 network interfaces: 28x 10gbase-x-sfpp, 20x 25gbase-x-sfp28, 8x 100gbase-x-qsfp28, 1x 1000base-t.
Is the Huawei NE8000 F1A-8H20Q still supported?
Lifecycle data is available for the Huawei NE8000 F1A-8H20Q in the NDX catalog. Access full lifecycle dates including general availability, end-of-sale, and end-of-support through NetBox Cloud or Enterprise.
What operational data is available for the Huawei NE8000 F1A-8H20Q?
The NDX catalog includes enrichment data for the Huawei NE8000 F1A-8H20Q in the following categories: lifecycle, thermal, environmental, operational, platform, snmp, imagery. Full enrichment values are available through NetBox Cloud or Enterprise.
How do I add the Huawei NE8000 F1A-8H20Q to NetBox?
You can import the Huawei NE8000 F1A-8H20Q directly into NetBox via the NDX features available in NetBox Cloud and NetBox Enterprise. NetBox Community users may download the YAML type definition and import it manually.
Where does the Huawei NE8000 F1A-8H20Q data come from?
The Huawei NE8000 F1A-8H20Q device type definition originates from the NetBox Community Device Type Library and has been enriched with operational metadata by NetBox Labs.
Related Devices from Huawei
Last verified April 4, 2026.

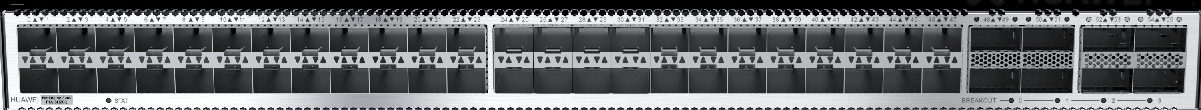

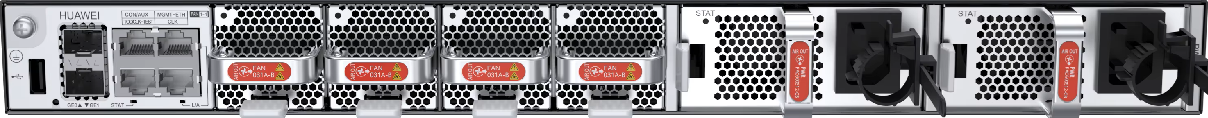

Elevation
