Fortinet FortiGate 400F
The Fortinet FortiGate 400F (FG-400F) is a 1U infrastructure device from Fortinet. It features 34 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, operational.
Last verified: April 4, 2026
Key Facts
| Manufacturer | Fortinet |
|---|---|
| Model | FortiGate 400F |
| Part Number | FG-400F |
| Type | Device Type |
| Form Factor | 1U, half-depth |
| Airflow | front-to-rear |
| Weight | 6.4 kg |
| Interfaces | 34 ports |
| Source | Community DTL |
| Enrichment | 7 categories available |
Specifications
Interfaces (34)
| Name | Type | Mgmt Only | Label |
|---|---|---|---|
| ha | 1000base-t | ||
| mgmt | 1000base-t | true | |
| port1 | 1000base-t | ||
| port2 | 1000base-t | ||
| port3 | 1000base-t | ||
| port4 | 1000base-t | ||
| port5 | 1000base-t | ||
| port6 | 1000base-t | ||
| port7 | 1000base-t | ||
| port8 | 1000base-t | ||
| port9 | 1000base-t | ||
| port10 | 1000base-t | ||
| port11 | 1000base-t | ||
| port12 | 1000base-t | ||
| port13 | 1000base-t | ||
| port14 | 1000base-t | ||
| port15 | 1000base-t | ||
| port16 | 1000base-t | ||
| x1 | 10gbase-x-sfpp | ||
| x2 | 10gbase-x-sfpp | ||
| x3 | 10gbase-x-sfpp | ||
| x4 | 10gbase-x-sfpp | ||
| x5 | 10gbase-x-sfpp | ||
| x6 | 10gbase-x-sfpp | ||
| x7 | 10gbase-x-sfpp | ||
| x8 | 10gbase-x-sfpp | ||
| port17 | 1000base-x-sfp | ||
| port18 | 1000base-x-sfp | ||
| port19 | 1000base-x-sfp | ||
| port20 | 1000base-x-sfp | ||
| port21 | 1000base-x-sfp | ||
| port22 | 1000base-x-sfp | ||
| port23 | 1000base-x-sfp | ||
| port24 | 1000base-x-sfp |
Console Ports (1)
| Name | Type |
|---|---|
| Console | rj-45 |
Module Bays (2)
| Name | Position | Label |
|---|---|---|
| PS1 | 1 | |
| PS2 | 2 |
Data Sources & Provenance
| Field | Type | Confidence | Source |
|---|---|---|---|
| lifecycle.ga_date | vendor datasheet | high | www.fortinet.com |
| thermal.tdp_watts | vendor datasheet | medium-high | www.fortinet.com |
| thermal.cooling_type | vendor datasheet | high | www.fortinet.com |
| environmental.max_operating_temp_c | vendor documentation | high | docs.fortinet.com |
| environmental.min_operating_temp_c | vendor documentation | high | docs.fortinet.com |
| environmental.operating_humidity_min | vendor documentation | high | docs.fortinet.com |
| environmental.operating_humidity_max | vendor documentation | high | docs.fortinet.com |
| environmental.operating_altitude_m | vendor documentation | medium-high | docs.fortinet.com |
| operational.typical_power_draw_watts | vendor datasheet | medium-high | www.fortinet.com |
| operational.max_power_draw_watts | vendor datasheet | medium-high | www.fortinet.com |
| snmp.versions | vendor documentation | medium-high | docs.fortinet.com |
| snmp.vendor_oid_prefix | vendor documentation | high | docs.fortinet.com |
| snmp.mibs | vendor documentation | medium-high | docs.fortinet.com |
| snmp.profile | vendor documentation | medium-high | docs.fortinet.com |
| platform.nos | vendor datasheet | high | www.fortinet.com |
| platform.nos_family | vendor datasheet | high | www.fortinet.com |
| platform.api_types | heuristic | medium | derived from extension blocks and cli_protocol |
Frequently Asked Questions
What is the Fortinet FortiGate 400F?
The Fortinet FortiGate 400F (FG-400F) is a 1U infrastructure device from Fortinet. It features 34 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, operational.
What is the form factor of the Fortinet FortiGate 400F?
The Fortinet FortiGate 400F is a 1U half-depth device with front-to-rear airflow. It weighs 6.4 kg.
How many ports does the Fortinet FortiGate 400F have?
The Fortinet FortiGate 400F has 34 network interfaces: 18x 1000base-t, 8x 10gbase-x-sfpp, 8x 1000base-x-sfp.
Is the Fortinet FortiGate 400F still supported?
Lifecycle data is available for the Fortinet FortiGate 400F in the NDX catalog. Access full lifecycle dates including general availability, end-of-sale, and end-of-support through NetBox Cloud or Enterprise.
What operational data is available for the Fortinet FortiGate 400F?
The NDX catalog includes enrichment data for the Fortinet FortiGate 400F in the following categories: lifecycle, thermal, environmental, operational, platform, snmp, imagery. Full enrichment values are available through NetBox Cloud or Enterprise.
How do I add the Fortinet FortiGate 400F to NetBox?
You can import the Fortinet FortiGate 400F directly into NetBox via the NDX features available in NetBox Cloud and NetBox Enterprise. NetBox Community users may download the YAML type definition and import it manually.
Where does the Fortinet FortiGate 400F data come from?
The Fortinet FortiGate 400F device type definition originates from the NetBox Community Device Type Library and has been enriched with operational metadata by NetBox Labs.
Related Devices from Fortinet
Last verified April 4, 2026.

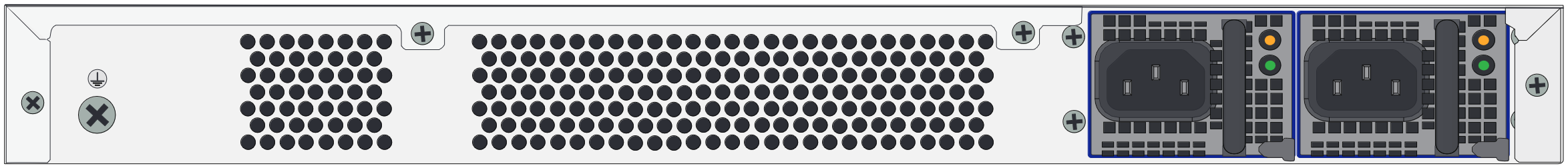

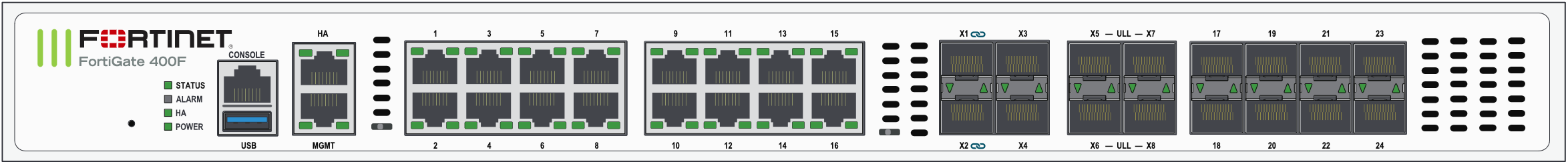

Elevation
Enrichment Availability
| Category | Available |
|---|---|
| Lifecycle | |
| Thermal | |
| Environmental | |
| Operational | |
| Platform | |
| SNMP | |
| gNMI | |
| NETCONF | |
| Redfish | |
| Modbus | |
| Imagery |
Access full enrichment data with NetBox Cloud or Enterprise.
