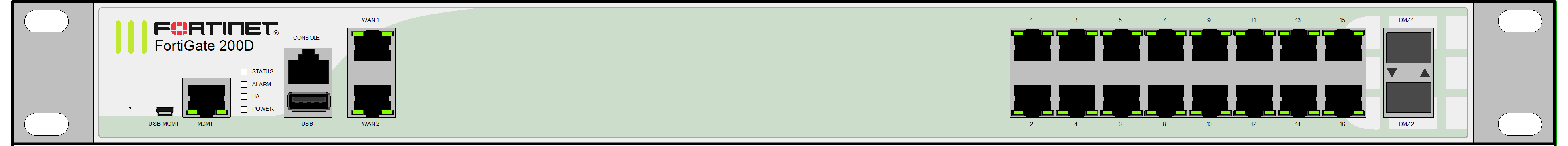

Fortinet FortiGate 200D
The Fortinet FortiGate 200D (FG-200D) is a 1U infrastructure device from Fortinet. It features 21 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, operational.
Last verified: April 4, 2026
Key Facts
| Manufacturer | Fortinet |
|---|---|
| Model | FortiGate 200D |
| Part Number | FG-200D |
| Type | Device Type |
| Form Factor | 1U, half-depth |
| Interfaces | 21 ports |
| Source | Community DTL |
| Enrichment | 7 categories available |
Specifications
Interfaces (21)
| Name | Type | Mgmt Only | Label |
|---|---|---|---|
| mgmt | 1000base-t | true | |
| wan1 | 1000base-t | ||
| wan2 | 1000base-t | ||
| port1 | 1000base-t | ||
| port2 | 1000base-t | ||
| port3 | 1000base-t | ||
| port4 | 1000base-t | ||
| port5 | 1000base-t | ||
| port6 | 1000base-t | ||
| port7 | 1000base-t | ||
| port8 | 1000base-t | ||
| port9 | 1000base-t | ||
| port10 | 1000base-t | ||
| port11 | 1000base-t | ||
| port12 | 1000base-t | ||
| port13 | 1000base-t | ||
| port14 | 1000base-t | ||
| port15 | 1000base-t | ||
| port16 | 1000base-t | ||
| dmz1 | 1000base-x-sfp | ||
| dmz2 | 1000base-x-sfp |
Power Ports (1)
| Name | Type | Max Draw (W) | Allocated (W) |
|---|---|---|---|
| PS1 | iec-60320-c14 | 79 | 55 |
Console Ports (1)
| Name | Type |
|---|---|
| Console | rj-45 |
Data Sources & Provenance
| Field | Type | Confidence | Source |
|---|---|---|---|
| lifecycle.ga_date | vendor datasheet | high | www.fortinet.com |
| thermal.tdp_watts | vendor datasheet | medium-high | www.fortinet.com |
| thermal.cooling_type | vendor datasheet | high | www.fortinet.com |
| environmental.max_operating_temp_c | vendor documentation | high | docs.fortinet.com |
| environmental.min_operating_temp_c | vendor documentation | high | docs.fortinet.com |
| environmental.operating_humidity_min | vendor documentation | high | docs.fortinet.com |
| environmental.operating_humidity_max | vendor documentation | high | docs.fortinet.com |
| environmental.operating_altitude_m | vendor documentation | medium-high | docs.fortinet.com |
| operational.typical_power_draw_watts | vendor datasheet | medium-high | www.fortinet.com |
| operational.max_power_draw_watts | vendor datasheet | medium-high | www.fortinet.com |
| lifecycle.eos_date | vendor eol bulletin | high | support.fortinet.com |
| lifecycle.eosw_date | vendor eol bulletin | high | support.fortinet.com |
| lifecycle.last_support_date | vendor eol bulletin | high | support.fortinet.com |
| snmp.versions | vendor documentation | medium-high | docs.fortinet.com |
| snmp.vendor_oid_prefix | vendor documentation | high | docs.fortinet.com |
| snmp.mibs | vendor documentation | medium-high | docs.fortinet.com |
| snmp.profile | vendor documentation | medium-high | docs.fortinet.com |
| platform.nos | vendor datasheet | high | www.fortinet.com |
| platform.nos_family | vendor datasheet | high | www.fortinet.com |
| platform.api_types | heuristic | medium | derived from extension blocks and cli_protocol |
Frequently Asked Questions
What is the Fortinet FortiGate 200D?
The Fortinet FortiGate 200D (FG-200D) is a 1U infrastructure device from Fortinet. It features 21 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, operational.
What is the form factor of the Fortinet FortiGate 200D?
The Fortinet FortiGate 200D is a 1U half-depth device.
How many ports does the Fortinet FortiGate 200D have?
The Fortinet FortiGate 200D has 21 network interfaces: 19x 1000base-t, 2x 1000base-x-sfp.
What are the power requirements for the Fortinet FortiGate 200D?
The Fortinet FortiGate 200D has 1 power port (iec-60320-c14). Maximum power draw is 79W.
Is the Fortinet FortiGate 200D still supported?
Lifecycle data is available for the Fortinet FortiGate 200D in the NDX catalog. Access full lifecycle dates including general availability, end-of-sale, and end-of-support through NetBox Cloud or Enterprise.
What operational data is available for the Fortinet FortiGate 200D?
The NDX catalog includes enrichment data for the Fortinet FortiGate 200D in the following categories: lifecycle, thermal, environmental, operational, platform, snmp, imagery. Full enrichment values are available through NetBox Cloud or Enterprise.
How do I add the Fortinet FortiGate 200D to NetBox?
You can import the Fortinet FortiGate 200D directly into NetBox via the NDX features available in NetBox Cloud and NetBox Enterprise. NetBox Community users may download the YAML type definition and import it manually.
Where does the Fortinet FortiGate 200D data come from?
The Fortinet FortiGate 200D device type definition originates from the NetBox Community Device Type Library and has been enriched with operational metadata by NetBox Labs.
