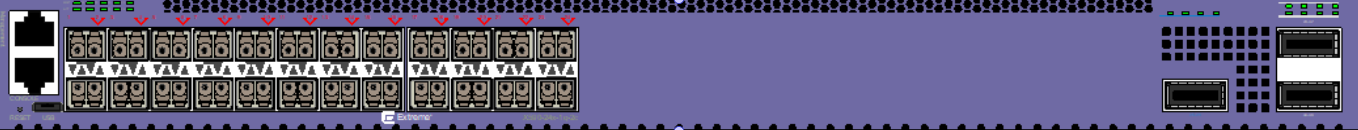

Extreme Networks X590-24x-1q-2c
The Extreme Networks X590-24x-1q-2c (16790) is a 1U infrastructure device from Extreme Networks. It features 28 network interfaces. The NDX catalog provides enrichment data across 6 categories including lifecycle, thermal, environmental, platform.
Last verified: April 4, 2026
Key Facts
| Manufacturer | Extreme Networks |
|---|---|
| Model | X590-24x-1q-2c |
| Part Number | 16790 |
| Type | Device Type |
| Form Factor | 1U, full-depth |
| Weight | 6.6 kg |
| Interfaces | 28 ports |
| Source | Community DTL |
| Enrichment | 6 categories available |
Specifications
Interfaces (28)
| Name | Type | Mgmt Only | Label |
|---|---|---|---|
| Mgmt-port | 1000base-t | true | |
| 1 | 10gbase-x-sfpp | ||
| 2 | 10gbase-x-sfpp | ||
| 3 | 10gbase-x-sfpp | ||
| 4 | 10gbase-x-sfpp | ||
| 5 | 10gbase-x-sfpp | ||
| 6 | 10gbase-x-sfpp | ||
| 7 | 10gbase-x-sfpp | ||
| 8 | 10gbase-x-sfpp | ||
| 9 | 10gbase-x-sfpp | ||
| 10 | 10gbase-x-sfpp | ||
| 11 | 10gbase-x-sfpp | ||
| 12 | 10gbase-x-sfpp | ||
| 13 | 10gbase-x-sfpp | ||
| 14 | 10gbase-x-sfpp | ||
| 15 | 10gbase-x-sfpp | ||
| 16 | 10gbase-x-sfpp | ||
| 17 | 10gbase-x-sfpp | ||
| 18 | 10gbase-x-sfpp | ||
| 19 | 10gbase-x-sfpp | ||
| 20 | 10gbase-x-sfpp | ||
| 21 | 10gbase-x-sfpp | ||
| 22 | 10gbase-x-sfpp | ||
| 23 | 10gbase-x-sfpp | ||
| 24 | 10gbase-x-sfpp | ||
| 25 | 40gbase-x-qsfpp | ||
| 29 | 100gbase-x-qsfp28 | ||
| 33 | 100gbase-x-qsfp28 |
Console Ports (1)
| Name | Type |
|---|---|
| Console | rj-45 |
Module Bays (2)
| Name | Position | Label |
|---|---|---|
| PSU-1 | PSU-1 | |
| PSU-2 | PSU-2 |
Data Sources & Provenance
| Field | Type | Confidence | Source |
|---|---|---|---|
| lifecycle.ga_date | vendor product page | medium | www.extremenetworks.com |
| thermal.cooling_type | vendor documentation | medium-high | documentation.extremenetworks.com |
| environmental.max_operating_temp_c | vendor documentation | medium-high | documentation.extremenetworks.com |
| environmental.min_operating_temp_c | vendor documentation | medium-high | documentation.extremenetworks.com |
| environmental.operating_humidity_min | vendor documentation | medium-high | documentation.extremenetworks.com |
| environmental.operating_humidity_max | vendor documentation | medium-high | documentation.extremenetworks.com |
| lifecycle.eos_date | vendor documentation | medium-high | www.it-server-room.com |
| lifecycle.last_support_date | vendor documentation | medium-high | www.it-server-room.com |
| lifecycle.eol_announced | vendor documentation | medium-high | www.it-server-room.com |
| snmp.vendor_oid_prefix | vendor documentation | high | documentation.extremenetworks.com |
| snmp.versions | vendor documentation | medium-high | documentation.extremenetworks.com |
| snmp.profile | vendor documentation | medium-high | documentation.extremenetworks.com |
| platform.nos | vendor documentation | high | documentation.extremenetworks.com |
| platform.nos_family | vendor documentation | high | documentation.extremenetworks.com |
| platform.api_types | heuristic | medium | derived from extension blocks and cli_protocol |
Frequently Asked Questions
What is the Extreme Networks X590-24x-1q-2c?
The Extreme Networks X590-24x-1q-2c (16790) is a 1U infrastructure device from Extreme Networks. It features 28 network interfaces. The NDX catalog provides enrichment data across 6 categories including lifecycle, thermal, environmental, platform.
What is the form factor of the Extreme Networks X590-24x-1q-2c?
The Extreme Networks X590-24x-1q-2c is a 1U full-depth device. It weighs 6.6 kg.
How many ports does the Extreme Networks X590-24x-1q-2c have?
The Extreme Networks X590-24x-1q-2c has 28 network interfaces: 24x 10gbase-x-sfpp, 2x 100gbase-x-qsfp28, 1x 1000base-t, 1x 40gbase-x-qsfpp.
Is the Extreme Networks X590-24x-1q-2c still supported?
Lifecycle data is available for the Extreme Networks X590-24x-1q-2c in the NDX catalog. Access full lifecycle dates including general availability, end-of-sale, and end-of-support through NetBox Cloud or Enterprise.
What operational data is available for the Extreme Networks X590-24x-1q-2c?
The NDX catalog includes enrichment data for the Extreme Networks X590-24x-1q-2c in the following categories: lifecycle, thermal, environmental, platform, snmp, imagery. Full enrichment values are available through NetBox Cloud or Enterprise.
How do I add the Extreme Networks X590-24x-1q-2c to NetBox?
You can import the Extreme Networks X590-24x-1q-2c directly into NetBox via the NDX features available in NetBox Cloud and NetBox Enterprise. NetBox Community users may download the YAML type definition and import it manually.
Where does the Extreme Networks X590-24x-1q-2c data come from?
The Extreme Networks X590-24x-1q-2c device type definition originates from the NetBox Community Device Type Library and has been enriched with operational metadata by NetBox Labs.
