Extreme Networks AP4020-WW
The Extreme Networks AP4020-WW is a 1U infrastructure device from Extreme Networks. It features 8 network interfaces. The NDX catalog provides enrichment data across 6 categories including lifecycle, thermal, environmental, platform.
Last verified: April 4, 2026
Key Facts
| Manufacturer | Extreme Networks |
|---|---|
| Model | AP4020-WW |
| Part Number | AP4020-WW |
| Type | Device Type |
| Form Factor | 1U, half-depth |
| Airflow | passive |
| Weight | 1.3 kg |
| Interfaces | 8 ports |
| Source | Community DTL |
| Enrichment | 6 categories available |
Specifications
Interfaces (8)
| Name | Type | Mgmt Only | Label |
|---|---|---|---|
| ETH0/POE | 5gbase-t | ||
| ETH1 | 2.5gbase-t | ||
| radio 0 | ieee802.11be | ||
| radio 1 | ieee802.11be | ||
| radio 2 | ieee802.11be | ||
| sensor | ieee802.11be | ||
| ble0 | ieee802.15.1 | ||
| iot0 | ieee802.15.4 |
Power Ports (1)
| Name | Type | Max Draw (W) | Allocated (W) |
|---|---|---|---|
| 12VDC | dc-terminal | 36 | 21 |
Console Ports (1)
| Name | Type |
|---|---|
| Console | usb-micro-b |
Data Sources & Provenance
| Field | Type | Confidence | Source |
|---|---|---|---|
| lifecycle.ga_date | vendor product page | medium | www.extremenetworks.com |
| thermal.cooling_type | vendor documentation | medium-high | documentation.extremenetworks.com |
| environmental.max_operating_temp_c | vendor documentation | medium-high | documentation.extremenetworks.com |
| environmental.min_operating_temp_c | vendor documentation | medium-high | documentation.extremenetworks.com |
| environmental.operating_humidity_min | vendor documentation | medium-high | documentation.extremenetworks.com |
| environmental.operating_humidity_max | vendor documentation | medium-high | documentation.extremenetworks.com |
| snmp.vendor_oid_prefix | vendor documentation | high | documentation.extremenetworks.com |
| snmp.versions | vendor documentation | medium-high | documentation.extremenetworks.com |
| platform.nos | vendor product page | high | www.extremenetworks.com |
| platform.nos_family | vendor product page | high | www.extremenetworks.com |
| platform.api_types | heuristic | medium | derived from extension blocks and cli_protocol |
Frequently Asked Questions
What is the Extreme Networks AP4020-WW?
The Extreme Networks AP4020-WW is a 1U infrastructure device from Extreme Networks. It features 8 network interfaces. The NDX catalog provides enrichment data across 6 categories including lifecycle, thermal, environmental, platform.
What is the form factor of the Extreme Networks AP4020-WW?
The Extreme Networks AP4020-WW is a 1U half-depth device with passive airflow. It weighs 1.3 kg.
How many ports does the Extreme Networks AP4020-WW have?
The Extreme Networks AP4020-WW has 8 network interfaces: 4x ieee802.11be, 1x 5gbase-t, 1x 2.5gbase-t, 1x ieee802.15.1, 1x ieee802.15.4.
What are the power requirements for the Extreme Networks AP4020-WW?
The Extreme Networks AP4020-WW has 1 power port (dc-terminal). Maximum power draw is 36W.
Is the Extreme Networks AP4020-WW still supported?
Lifecycle data is available for the Extreme Networks AP4020-WW in the NDX catalog. Access full lifecycle dates including general availability, end-of-sale, and end-of-support through NetBox Cloud or Enterprise.
What operational data is available for the Extreme Networks AP4020-WW?
The NDX catalog includes enrichment data for the Extreme Networks AP4020-WW in the following categories: lifecycle, thermal, environmental, platform, snmp, imagery. Full enrichment values are available through NetBox Cloud or Enterprise.
How do I add the Extreme Networks AP4020-WW to NetBox?
You can import the Extreme Networks AP4020-WW directly into NetBox via the NDX features available in NetBox Cloud and NetBox Enterprise. NetBox Community users may download the YAML type definition and import it manually.
Where does the Extreme Networks AP4020-WW data come from?
The Extreme Networks AP4020-WW device type definition originates from the NetBox Community Device Type Library and has been enriched with operational metadata by NetBox Labs.
Related Devices from Extreme Networks
Last verified April 4, 2026.

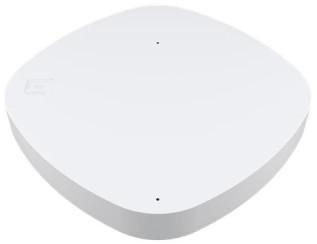

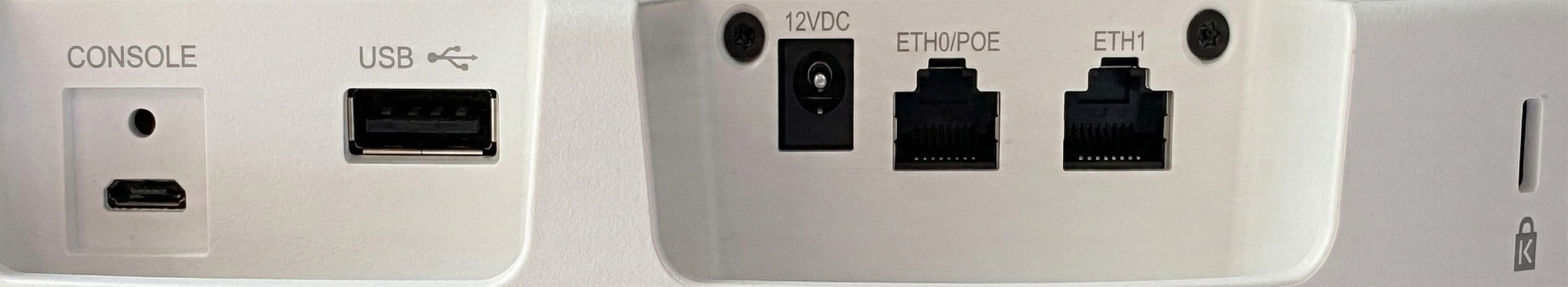

Elevation
