Arista CCS-720DT-24S-2F
The Arista CCS-720DT-24S-2F is a 1U infrastructure device from Arista Networks. It features 29 network interfaces. The NDX catalog provides enrichment data across 8 categories including lifecycle, thermal, environmental, platform.
Last verified: April 4, 2026
Key Facts
| Manufacturer | Arista Networks |
|---|---|
| Model | CCS-720DT-24S-2F |
| Part Number | CCS-720DT-24S-2F |
| Type | Device Type |
| Form Factor | 1U, half-depth |
| Airflow | front-to-rear |
| Weight | 9.6 lb |
| Interfaces | 29 ports |
| Source | Community DTL |
| Enrichment | 8 categories available |
Specifications
Interfaces (29)
| Name | Type | Mgmt Only | Label |
|---|---|---|---|
| Ethernet1 | 1000base-t | ||
| Ethernet2 | 1000base-t | ||
| Ethernet3 | 1000base-t | ||
| Ethernet4 | 1000base-t | ||
| Ethernet5 | 1000base-t | ||
| Ethernet6 | 1000base-t | ||
| Ethernet7 | 1000base-t | ||
| Ethernet8 | 1000base-t | ||
| Ethernet9 | 1000base-t | ||
| Ethernet10 | 1000base-t | ||
| Ethernet11 | 1000base-t | ||
| Ethernet12 | 1000base-t | ||
| Ethernet13 | 1000base-t | ||
| Ethernet14 | 1000base-t | ||
| Ethernet15 | 1000base-t | ||
| Ethernet16 | 1000base-t | ||
| Ethernet17 | 1000base-t | ||
| Ethernet18 | 1000base-t | ||
| Ethernet19 | 1000base-t | ||
| Ethernet20 | 1000base-t | ||
| Ethernet21 | 1000base-t | ||
| Ethernet22 | 1000base-t | ||
| Ethernet23 | 1000base-t | ||
| Ethernet24 | 1000base-t | ||
| Ethernet49 | 10gbase-x-sfpp | ||
| Ethernet50 | 10gbase-x-sfpp | ||
| Ethernet51 | 10gbase-x-sfpp | ||
| Ethernet52 | 10gbase-x-sfpp | ||
| Management1 | 1000base-t | true |
Power Ports (2)
| Name | Type | Max Draw (W) | Allocated (W) |
|---|---|---|---|
| PS1 | iec-60320-c14 | 100 | 65 |
| PS2 | iec-60320-c14 | 100 | 65 |
Console Ports (1)
| Name | Type |
|---|---|
| Console | rj-45 |
Data Sources & Provenance
| Field | Type | Confidence | Source |
|---|---|---|---|
| lifecycle.ga_date | vendor datasheet | high | www.arista.com |
| environmental.max_operating_temp_c | vendor datasheet | high | www.arista.com |
| thermal.cooling_type | vendor datasheet | high | www.arista.com |
| platform.nos | vendor product page | high | www.arista.com |
| platform.api_types | heuristic | medium | derived from extension blocks and cli_protocol |
| snmp.vendor_oid_prefix | vendor documentation | high | www.arista.com |
| netconf.netconf_version | vendor documentation | medium-high | www.arista.com |
| gnmi.gnmi_version | vendor documentation | medium-high | www.arista.com |
Frequently Asked Questions
What is the Arista CCS-720DT-24S-2F?
The Arista CCS-720DT-24S-2F is a 1U infrastructure device from Arista Networks. It features 29 network interfaces. The NDX catalog provides enrichment data across 8 categories including lifecycle, thermal, environmental, platform.
What is the form factor of the Arista CCS-720DT-24S-2F?

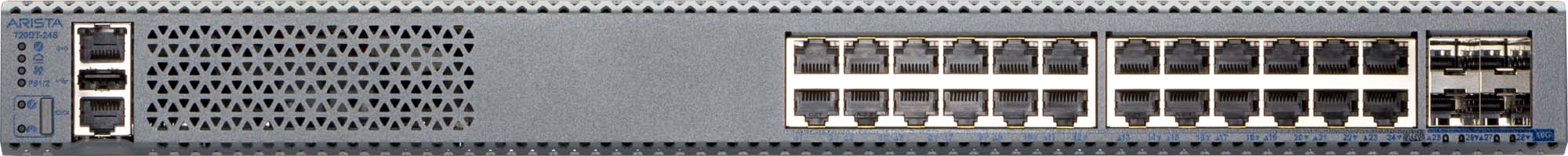

The Arista CCS-720DT-24S-2F is a 1U half-depth device with front-to-rear airflow. It weighs 9.6 lb.
How many ports does the Arista CCS-720DT-24S-2F have?
The Arista CCS-720DT-24S-2F has 29 network interfaces: 25x 1000base-t, 4x 10gbase-x-sfpp.
What are the power requirements for the Arista CCS-720DT-24S-2F?

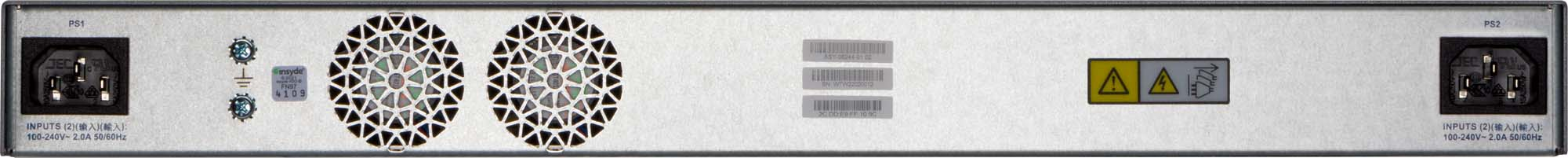

The Arista CCS-720DT-24S-2F has 2 power ports (iec-60320-c14, iec-60320-c14). Maximum power draw is 200W.
Is the Arista CCS-720DT-24S-2F still supported?
Lifecycle data is available for the Arista CCS-720DT-24S-2F in the NDX catalog. Access full lifecycle dates including general availability, end-of-sale, and end-of-support through NetBox Cloud or Enterprise.
What operational data is available for the Arista CCS-720DT-24S-2F?
The NDX catalog includes enrichment data for the Arista CCS-720DT-24S-2F in the following categories: lifecycle, thermal, environmental, platform, snmp, gnmi, netconf, imagery. Full enrichment values are available through NetBox Cloud or Enterprise.
How do I add the Arista CCS-720DT-24S-2F to NetBox?
You can import the Arista CCS-720DT-24S-2F directly into NetBox via the NDX features available in NetBox Cloud and NetBox Enterprise. NetBox Community users may download the YAML type definition and import it manually.
Where does the Arista CCS-720DT-24S-2F data come from?
The Arista CCS-720DT-24S-2F device type definition originates from the NetBox Community Device Type Library and has been enriched with operational metadata by NetBox Labs.
Related Devices from Arista Networks
Last verified April 4, 2026.
Elevation
Enrichment Availability
| Category | Available |
|---|---|
| Lifecycle | |
| Thermal | |
| Environmental | |
| Operational | |
| Platform | |
| SNMP | |
| gNMI | |
| NETCONF | |
| Redfish | |
| Modbus | |
| Imagery |
Access full enrichment data with NetBox Cloud or Enterprise.
