Alcatel-Lucent OS6860-48
The Alcatel-Lucent OS6860-48 (903715-90) is a 1U infrastructure device from Alcatel-Lucent Enterprise. It features 55 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, operational.
Last verified: June 2, 2026
Key Facts
| Manufacturer | Alcatel-Lucent Enterprise |
|---|---|
| Model | OS6860-48 |
| Part Number | 903715-90 |
| Type | Device Type |
| Form Factor | 1U, half-depth |
| Airflow | front-to-rear |
| Weight | 5.4 kg |
| Interfaces | 55 ports |
| Source | Community DTL |
| Enrichment | 7 categories available |
Specifications
Interfaces (55)
| Name | Type | Mgmt Only | Label |
|---|---|---|---|
| 1/1/1 | 1000base-t | ||
| 1/1/2 | 1000base-t | ||
| 1/1/3 | 1000base-t | ||
| 1/1/4 | 1000base-t | ||
| 1/1/5 | 1000base-t | ||
| 1/1/6 | 1000base-t | ||
| 1/1/7 | 1000base-t | ||
| 1/1/8 | 1000base-t | ||
| 1/1/9 | 1000base-t | ||
| 1/1/10 | 1000base-t | ||
| 1/1/11 | 1000base-t | ||
| 1/1/12 | 1000base-t | ||
| 1/1/13 | 1000base-t | ||
| 1/1/14 | 1000base-t | ||
| 1/1/15 | 1000base-t | ||
| 1/1/16 | 1000base-t | ||
| 1/1/17 | 1000base-t | ||
| 1/1/18 | 1000base-t | ||
| 1/1/19 | 1000base-t | ||
| 1/1/20 | 1000base-t | ||
| 1/1/21 | 1000base-t | ||
| 1/1/22 | 1000base-t | ||
| 1/1/23 | 1000base-t | ||
| 1/1/24 | 1000base-t | ||
| 1/1/25 | 1000base-t | ||
| 1/1/26 | 1000base-t | ||
| 1/1/27 | 1000base-t | ||
| 1/1/28 | 1000base-t | ||
| 1/1/29 | 1000base-t | ||
| 1/1/30 | 1000base-t | ||
| 1/1/31 | 1000base-t | ||
| 1/1/32 | 1000base-t | ||
| 1/1/33 | 1000base-t | ||
| 1/1/34 | 1000base-t | ||
| 1/1/35 | 1000base-t | ||
| 1/1/36 | 1000base-t | ||
| 1/1/37 | 1000base-t | ||
| 1/1/38 | 1000base-t | ||
| 1/1/39 | 1000base-t | ||
| 1/1/40 | 1000base-t | ||
| 1/1/41 | 1000base-t | ||
| 1/1/42 | 1000base-t | ||
| 1/1/43 | 1000base-t | ||
| 1/1/44 | 1000base-t | ||
| 1/1/45 | 1000base-t | ||
| 1/1/46 | 1000base-t | ||
| 1/1/47 | 1000base-t | ||
| 1/1/48 | 1000base-t | ||
| 1/1/49 | 10gbase-x-sfpp | ||
| 1/1/50 | 10gbase-x-sfpp | ||
| 1/1/51 | 10gbase-x-sfpp | ||
| 1/1/52 | 10gbase-x-sfpp | ||
| 1/1/53 | 40gbase-x-qsfpp | ||
| 1/1/54 | 40gbase-x-qsfpp | ||
| Loopback0 | virtual |
Power Ports (2)
| Name | Type | Max Draw (W) | Allocated (W) |
|---|---|---|---|
| PS1 | iec-60320-c14 | 150 | 60 |
| PS2 | iec-60320-c14 | 150 | 60 |
Console Ports (1)
| Name | Type |
|---|---|
| Console | usb-micro-b |
Data Sources & Provenance
| Field | Type | Confidence | Source |
|---|---|---|---|
| environmental.max_operating_temp_c | vendor datasheet | high | www.al-enterprise.com |
| thermal.cooling_type | vendor datasheet | high | www.al-enterprise.com |
| operational.typical_power_draw_watts | vendor datasheet | high | www.al-enterprise.com |
| operational.max_power_draw_watts | vendor datasheet | high | www.al-enterprise.com |
| lifecycle.ga_date | vendor datasheet | high | www.al-enterprise.com |
| lifecycle.eol_announced | vendor datasheet | high | www.al-enterprise.com |
| environmental.min_operating_temp_c | vendor product page | high | www.al-enterprise.com |
| environmental.operating_humidity_min | vendor product page | high | www.al-enterprise.com |
| environmental.operating_humidity_max | vendor product page | high | www.al-enterprise.com |
| environmental.operating_altitude_m | vendor product page | high | www.al-enterprise.com |
| lifecycle.eos_date | vendor eol bulletin | medium | www.scribd.com |
| lifecycle.eosw_date | vendor eol bulletin | medium | www.scribd.com |
| lifecycle.last_support_date | vendor eol bulletin | medium | www.scribd.com |
| snmp.versions | vendor product page | high | www.al-enterprise.com |
| snmp.vendor_oid_prefix | third party | high | www.iana.org |
| platform.nos | vendor product page | high | www.al-enterprise.com |
| platform.api_types | heuristic | medium | derived from extension blocks and cli_protocol |
Frequently Asked Questions
What is the Alcatel-Lucent OS6860-48?
The Alcatel-Lucent OS6860-48 (903715-90) is a 1U infrastructure device from Alcatel-Lucent Enterprise. It features 55 network interfaces. The NDX catalog provides enrichment data across 7 categories including lifecycle, thermal, environmental, operational.
What is the form factor of the Alcatel-Lucent OS6860-48?
The Alcatel-Lucent OS6860-48 is a 1U half-depth device with front-to-rear airflow. It weighs 5.4 kg.
How many ports does the Alcatel-Lucent OS6860-48 have?
The Alcatel-Lucent OS6860-48 has 55 network interfaces: 48x 1000base-t, 4x 10gbase-x-sfpp, 2x 40gbase-x-qsfpp, 1x virtual.
What are the power requirements for the Alcatel-Lucent OS6860-48?
The Alcatel-Lucent OS6860-48 has 2 power ports (iec-60320-c14, iec-60320-c14). Maximum power draw is 300W.
Is the Alcatel-Lucent OS6860-48 still supported?
Lifecycle data is available for the Alcatel-Lucent OS6860-48 in the NDX catalog. Access full lifecycle dates including general availability, end-of-sale, and end-of-support through NetBox Cloud or Enterprise.
What operational data is available for the Alcatel-Lucent OS6860-48?
The NDX catalog includes enrichment data for the Alcatel-Lucent OS6860-48 in the following categories: lifecycle, thermal, environmental, operational, platform, snmp, imagery. Full enrichment values are available through NetBox Cloud or Enterprise.
How do I add the Alcatel-Lucent OS6860-48 to NetBox?
You can import the Alcatel-Lucent OS6860-48 directly into NetBox via the NDX features available in NetBox Cloud and NetBox Enterprise. NetBox Community users may download the YAML type definition and import it manually.
Where does the Alcatel-Lucent OS6860-48 data come from?
The Alcatel-Lucent OS6860-48 device type definition originates from the NetBox Community Device Type Library and has been enriched with operational metadata by NetBox Labs.
Related Devices from Alcatel-Lucent Enterprise
Last verified June 2, 2026.

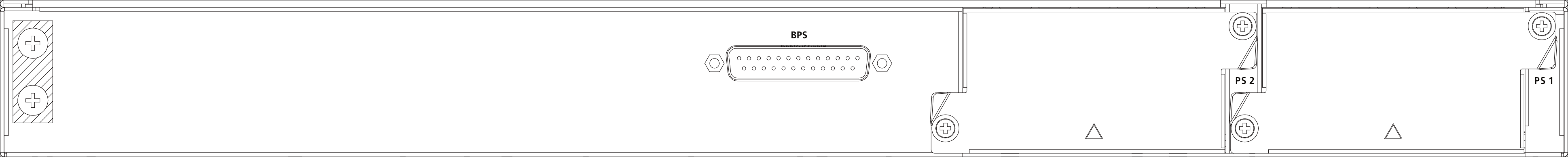

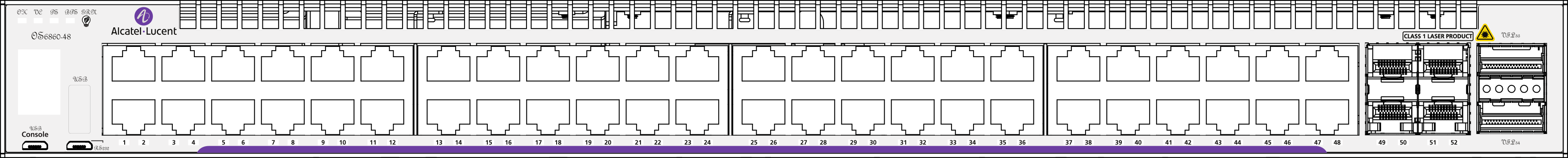

Elevation
