Module 6 - Configuration Assurance: Netpicker

Tip

• Make sure your lab devices are in the correct state by running: ./3_start_network.sh network/6.1_assurance/

Netpicker allows us to validate our device configurations. It can be used to validate anything you can express in code, but also makes it easy to generate validations even if you can’t code. Perhaps you’d like to know if there are any known vulnerabilities for a platform version you’re running in your network, or if your device configurations adhere to your company’s security policies? Netpicker can do all of that and more.

To get started we need to tell Netpicker about our devices. Now that we have NetBox as our Network Source of Truth, we’ll be importing our devices from NetBox into Netpicker.

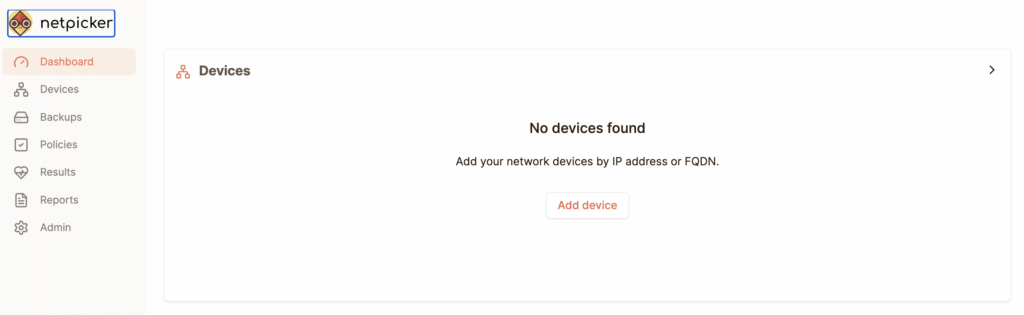

First log-in to Netpicker and click on Add Device

Netpicker URL: ./0_set_envvars.sh | grep -i netpicker
username admin@admin.com
password 12345678

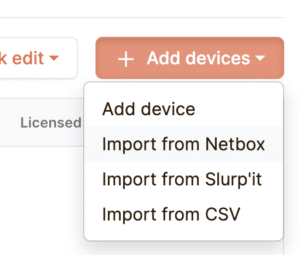

Now click on + Add devices and then click on Import from NetBox

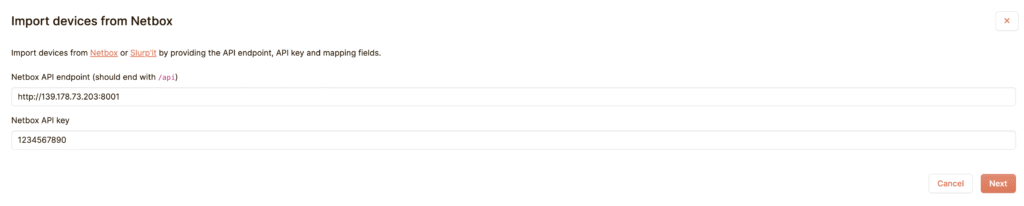

Then provide your NetBox URL, NetBox API key and click Next

NetBox URL: ./0_set_envvars.sh | grep -i netbox
NetBox API Key: 1234567890

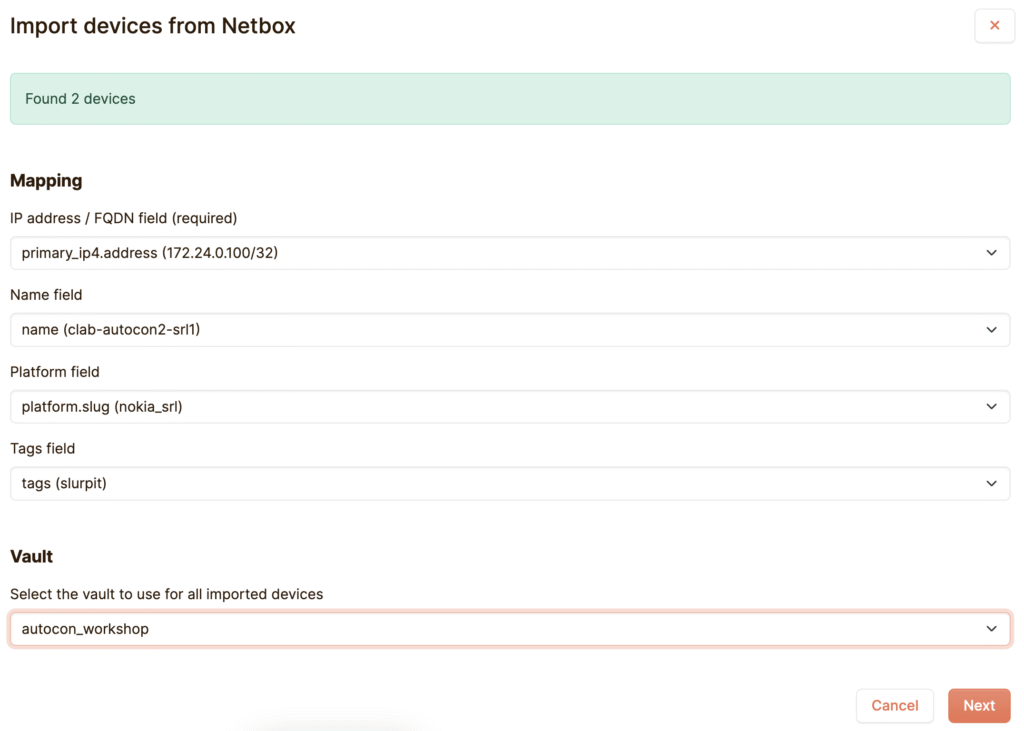

Then on the next screen under Vault select autocon_workshop. Then click Next

Our network devices have now been imported from NetBox into Netpicker!

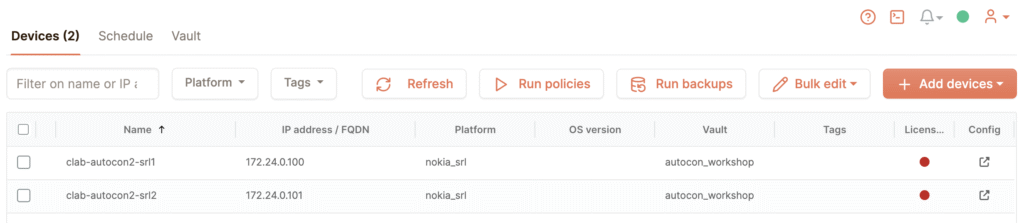

Netpicker is a powerful tool for staying in control of our device configurations. Let’s first ask Netpicker to backup our device configurations. On the Devices screen click Run backups

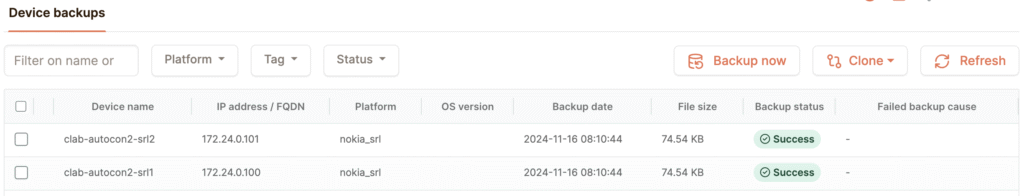

Navigate over to Backups and wait for the backups to arrive. You can hit Refresh to update the view until both backups report Success.

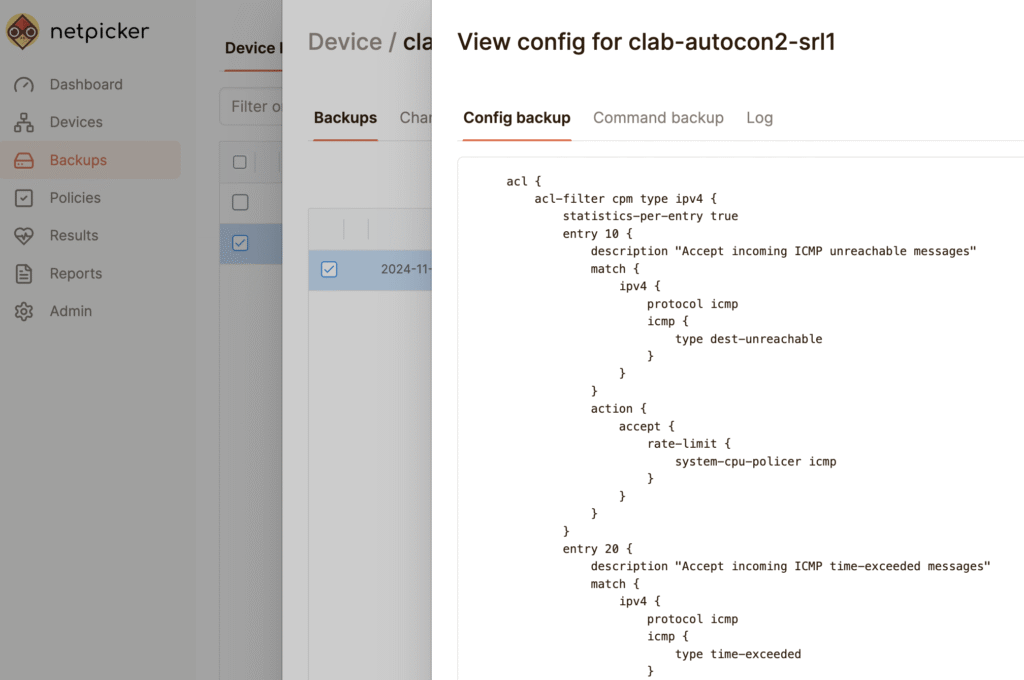

You can now inspect the backups. Click on clab-autocon2-srl1, and then click on the backup to view it.

Now that Netpicker has pulled the configuration backups from our devices, we can use the real power of Netpicker, Policies and Rules. Policies are logical groupings of Rules. There are two different types of Rules:

1. Simple rules – require no coding knowledge and can be used to express simple checks against our configuration backups using plain text or regexes
2. Python rules – allow you to use the Python language to create powerful checks that can also include input from NetBox

Creating a Netpicker simple rule

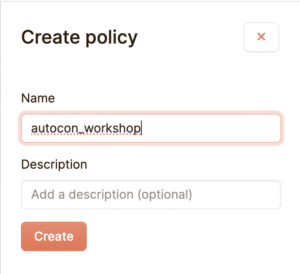

Let’s start by creating a simple rule to check if ntp is configured on our devices. First we need to create a Policy for our simple rule to live in. Click on Policies in the left hand menu bar, and then + Create Policy in the top right. Give your policy a name, and then click Create.

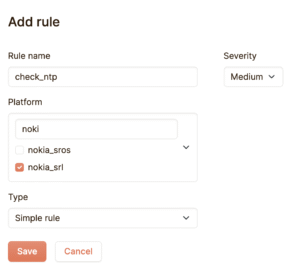

You’ll now be taken to your new policy. Click + Add Rule in the top-right. Fill in the following details and click Save.

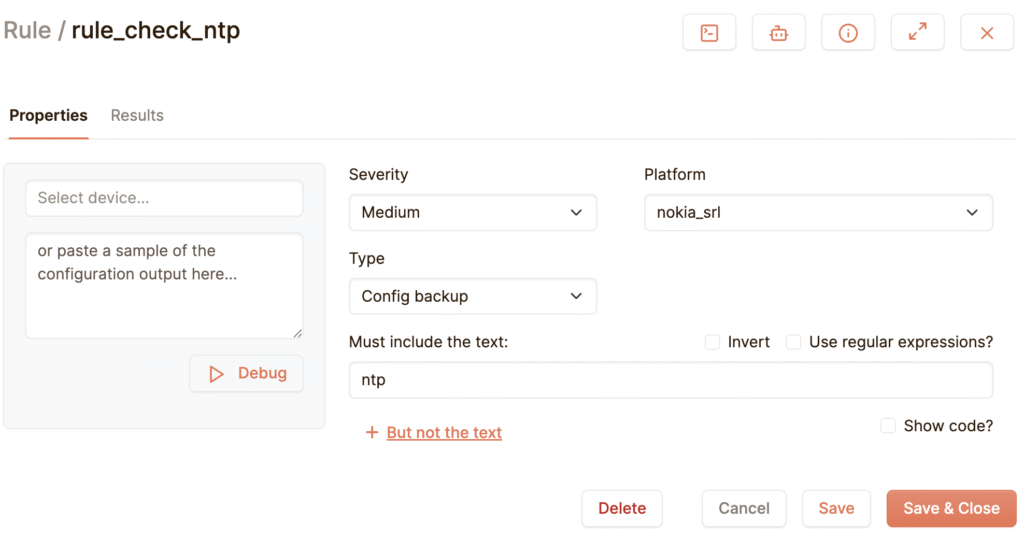

You’ll now be taken to your new rule. Click on Properties, where you can now configure your rule. In this case we’re going to define a very simple rule which just checks for the existence of the string ntp in the device’s configuration backup.

In the textbox under Must include the text: add ntp and then click Save.

Now our Netpicker simple rule is configured, we can test it. Netpicker provide a handy debug mode, we can use to test our rules. In the textbox above the Debug button enter clab-autocon2-srl1 and then click Debug.

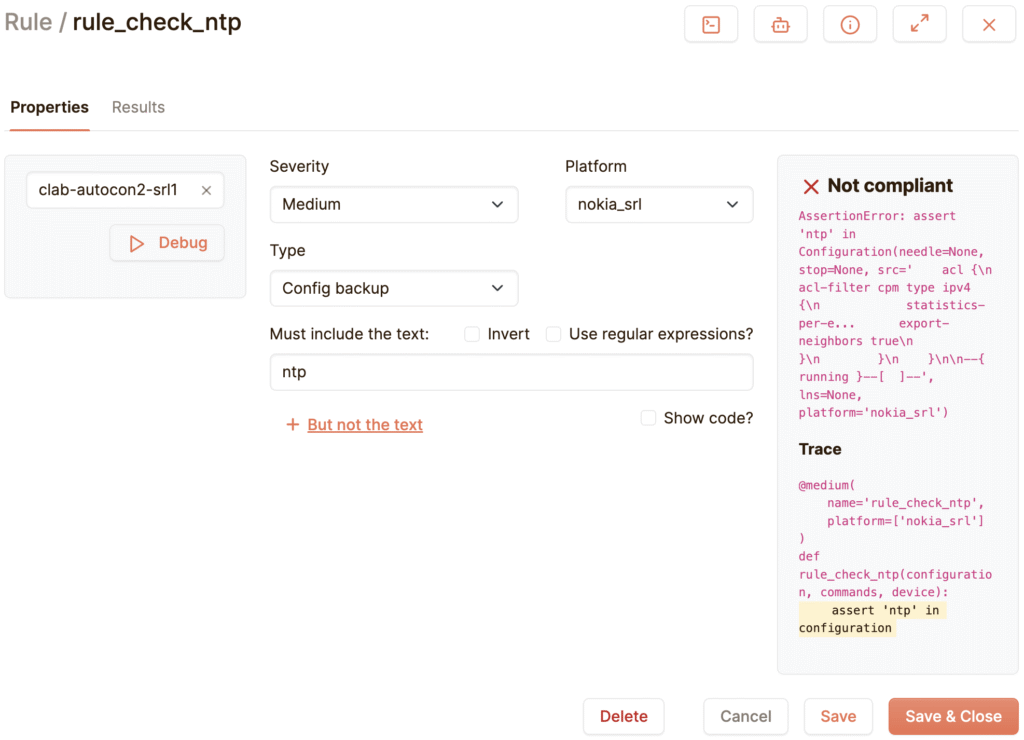

After a few seconds you’ll see the output of the debug run on the right. In this case, the rule is Not compliant meaning that ntp is not configured on this device, because the string ntp cannot be found in the configuration backup.

When you’re done testing hit Save & Close. You’ll now be taken back to the policy you created earlier.

Creating a Netpicker Python rule

As mentioned earlier, Netpicker Python rules afford us much more flexibility, because we can write our tests in code. Python rules also allow us to query the Source of Truth, NetBox. Let’s create a Python rule to check if the hostname on the device, is the same as it’s hostname in NetBox!

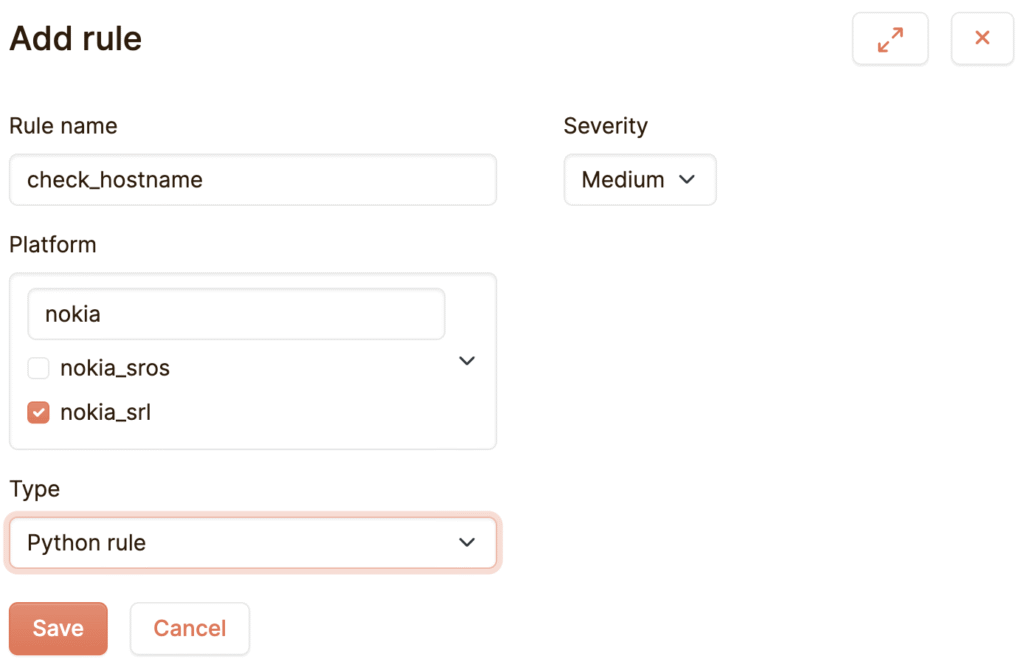

In your policy, click + Add Rule in the top-right. Fill in the following details and click Save.

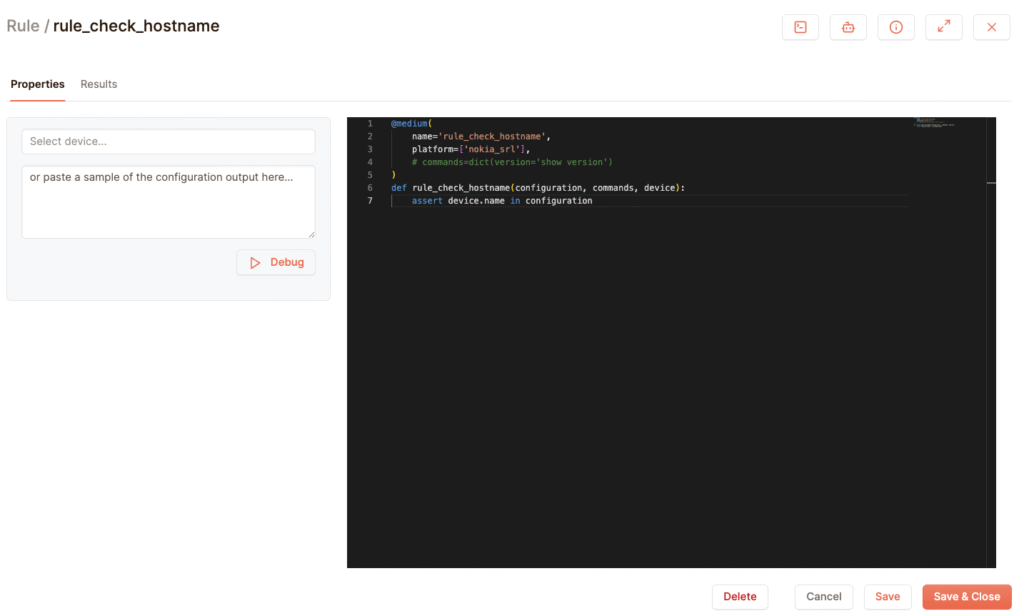

You’ll now be taken to your new rule. Click on Properties, where you can now configure your Python rule. In this case our rule is going to check that the hostname defined in NetBox appears in the device’s configuration backup.

In the code editor on the right, remove the current content, replace it with the code below and then click Save.

@medium(
    name='rule_check_hostname',
    platform=['nokia_srl'],
    # commands=dict(version='show version')
)
def rule_check_hostname(configuration, commands, device):
    assert device.name in configuration

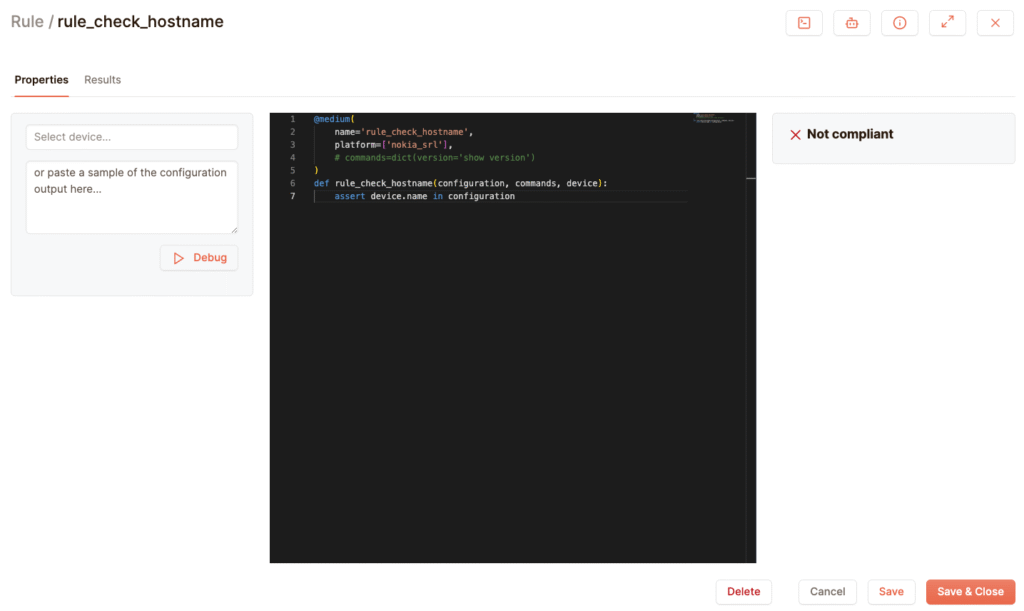

As with our simple rule, you can now use the Netpicker rule debugger run the rule against clab-autocon2-srl1.

After a few seconds you’ll see the output of the debug run on the right. In this case, the rule is Not compliant meaning that the hostname in NetBox is not present in the device’s configuration backup.

When you’re done testing hit Save & Close. You’ll now be taken back to the policy you created earlier.



We now have two Netpicker rules set up to help us check when our device configurations are not compliant. Our simple rule states that ntp should be configured on the devices, and our Python rules states that the hostname in the device configurations must match the hostname in NetBox. Both are currently failing, so let’s fix that.

Tip

• If you’d rather skip the manual steps, this command will make your lab devices compliant:
  ./3_start_network.sh network/6.2_assurance

First let’s fix clab-autocon2-srl1.

username admin
password NokiaSrl1!

ssh admin@clab-autocon2-srl1

# First fix NTP
enter candidate
/ system ntp admin-state enable
/ system ntp network-instance default server 0.pool.ntp.org
/ system ntp network-instance default server 1.pool.ntp.org
commit now

# Then fix the hostname
enter candidate
/ system name host-name clab-autocon2-srl1
commit now

Tip

• Use Ctrl+D to exit the Nokia SR Linux CLI

Now let’s fix clab-autocon2-srl2.

username admin
password NokiaSrl1!

ssh admin@clab-autocon2-srl2

# First fix NTP
enter candidate
/ system ntp admin-state enable
/ system ntp network-instance default server 0.pool.ntp.org
/ system ntp network-instance default server 1.pool.ntp.org
commit now

# Then fix the hostname
enter candidate
/ system name host-name clab-autocon2-srl2
commit now

Tip

Use Ctrl+D to exit the Nokia SR Linux CLI

We have now configured ntp and added the correct hostname for each of our lab devices, so our network should be compliant. First let’s manually inspect the differences.

First we need to ask Netpicker to pull the device configurations again. As we did earlier, go back to Backups and click Backup Now.

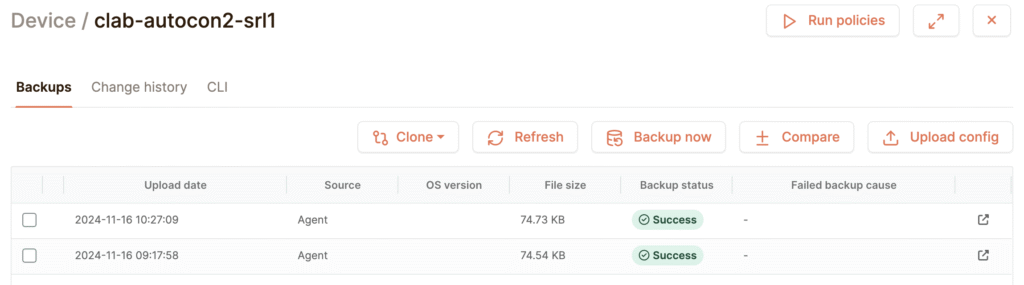

You can hit Refresh until the you see the Backup date column has been updated to the current time, showing us that new configuration backups have been pulled from our devices. Click on clab-autocon2-srl1 and you’ll see that we now have two backups.

Let’s compare the two backups to see what has changed. Check the checkboxes on the left of each backup and then click ± Compare.

Tip

• If you used the tip to skip the manual configuration you’ll see a lot of differences between the two backups.
  This is because to skip the manual steps we recreate the devices under the hood, which leads to the certificates being regenerated.

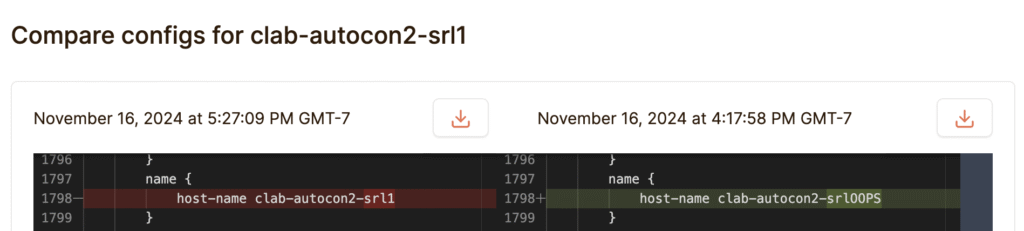

Scroll through the differences between the two configurations until you find the hostname section.

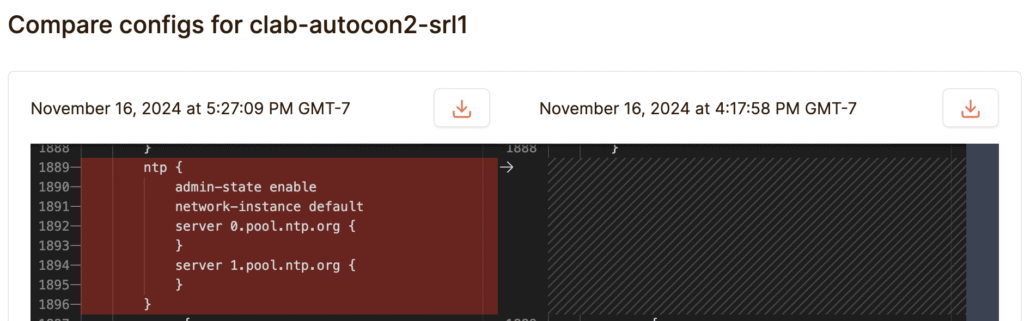

Keep scrolling until you find the ntp section.

Our changes look good. Let’s see if Netpicker policy agrees!

So far we have been using Netpicker’s debug mode to run our rules, but running individual rules per device doesn’t scale very well, so let’s run our whole policy in one go.

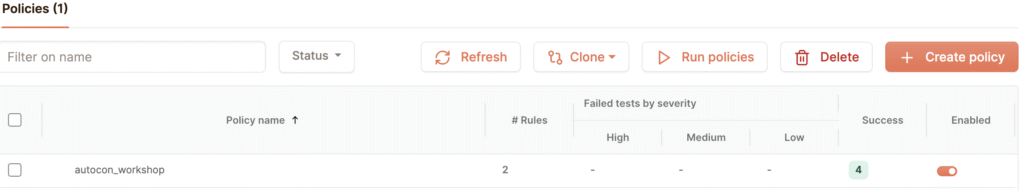

Click Policies on the left hand menu bar and then hit Run Policies. After a short while, you should see that 4 rules have run successfully.

Next Section – Automated Network Changes – Ansible
