IPSEC VPN Tunnels (Single Region)
Deprecated
This connectivity option is no longer offered to new customers. For current connectivity information, see Ports and Connectivity Architecture.

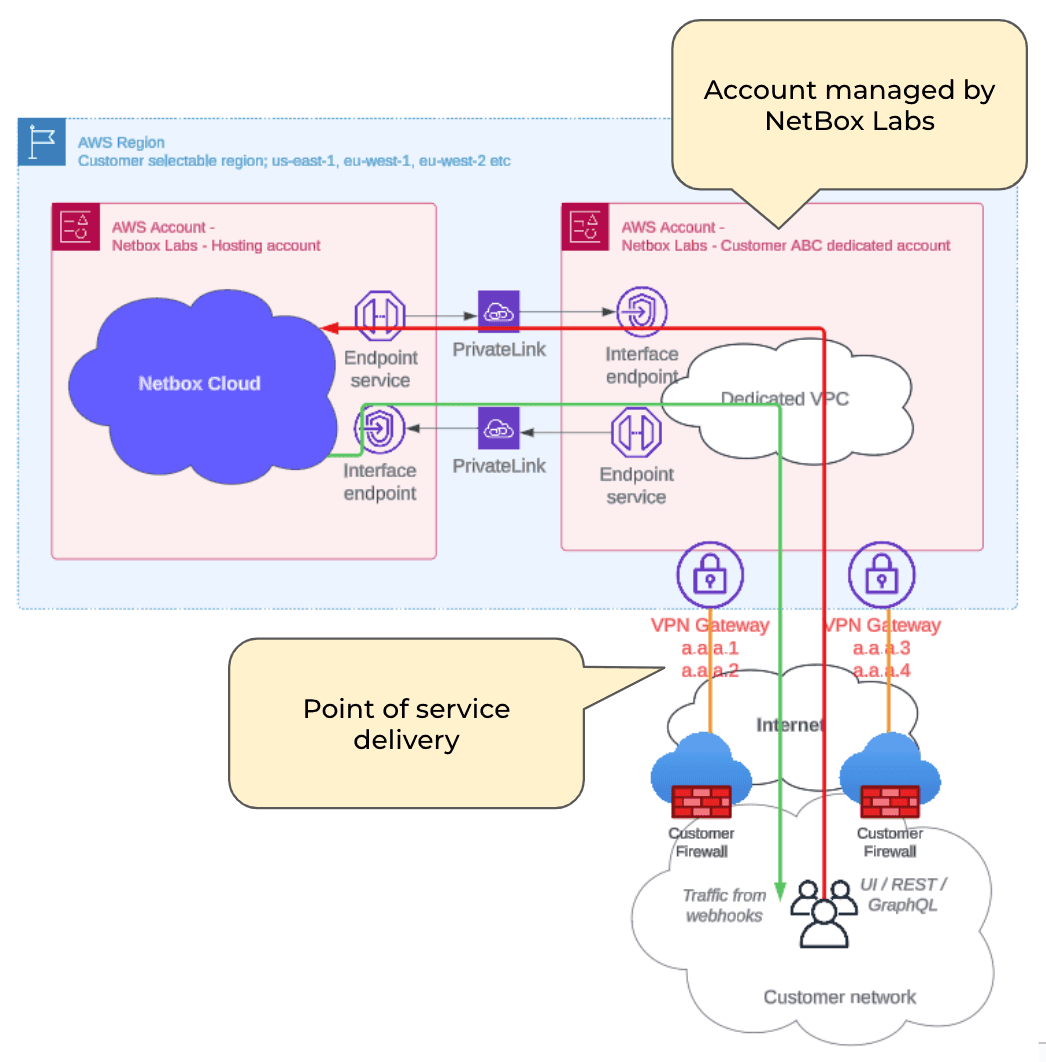

In this solution NetBox Cloud is securely delivered over an IPSEC VPN. You have single or dual tunnel options, and use a static route or the preferred option of BGP routing. Customer IP space (/24 or /25) is assigned for the VPC as this is required to host load balancers and proxies within the dedicated customer Account/VPC.
Internally we will allocate a /27 per availability zone for each of the 3 availability zones. The AWS VPN Gateway product provides 2 tunnels by default for resilience, and each terminates in a different availability zone.

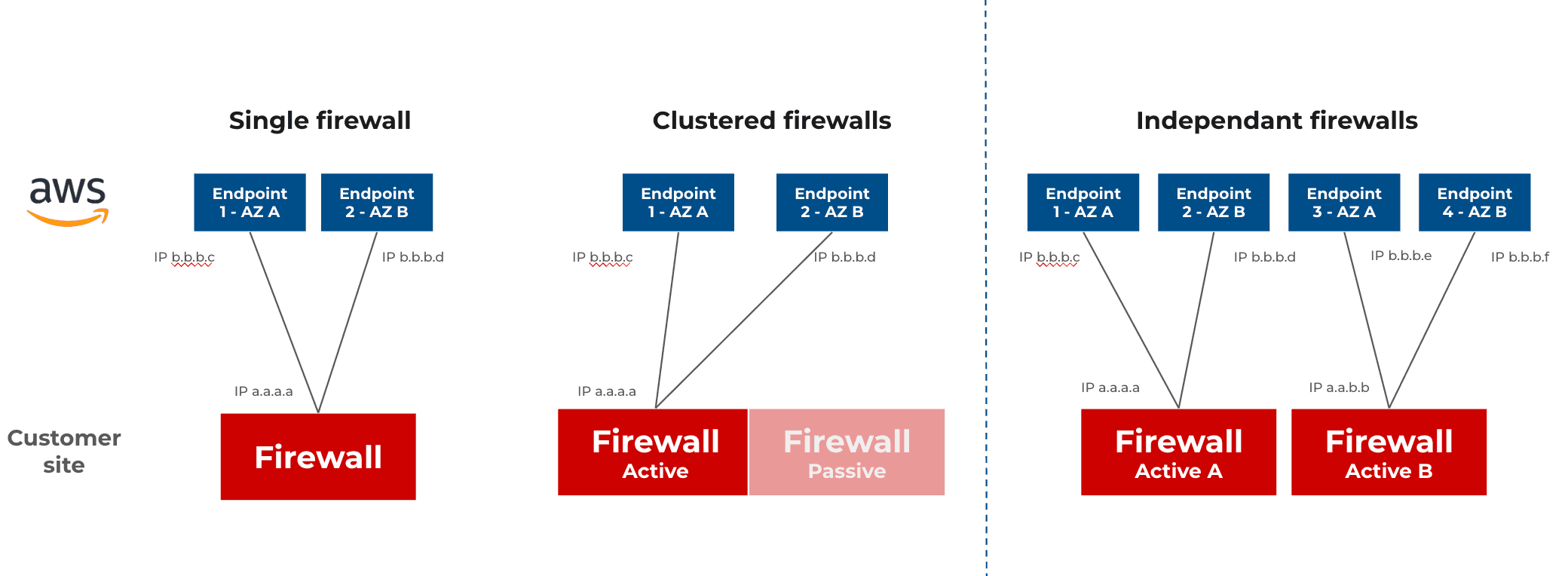

Redundancy options
With the IPSEC VPN solution there are options for Single, Active/Passive and Active/Active Firewalls:
